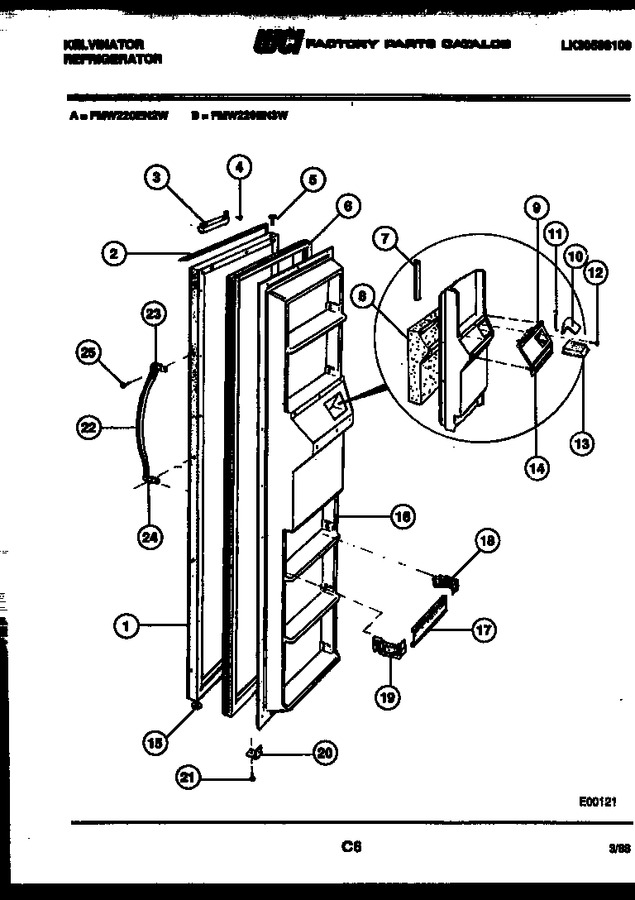

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G190072-11		Freezer Door-almond		Appelez-nous	-
2	G189468-09		Trim-freezer Door		Appelez-nous	-
3	G161119		Door Closer		Appelez-nous	-
4	G169729		Screw-closer Mtg		Appelez-nous	-
5	G183139		Bearing-upper Hinge		Appelez-nous	-
6	G180551-03		Gasket-freezer Door		Appelez-nous	-
7	G177720		Shield-wiring		Appelez-nous	-
8	G181913		Insulation-housing		Appelez-nous	-
9	G179017		Pin-ice Door Hinge		Appelez-nous	-
10	G175040-01		Flipper-ice Door		Appelez-nous	-
11	G184726		Spring-flipper		Appelez-nous	-
12	G187363		Screw		Appelez-nous	-
13	3017430		Ice Door		Appelez-nous	-
14	G181241-01		Trim Cover-door Pnl		Appelez-nous	-
15	G175070		Bushing-lower Hinge		Appelez-nous	-
16	3015127		Panel-inner Door		Appelez-nous	-
17	3015077		Door Rack (5)		Appelez-nous	-
18	G170022-01		Support Rs (5)		Appelez-nous	-
19	G170023-01		Support Ls (5)		Appelez-nous	-
20	G165376		Bumper - Light Switch		Appelez-nous	-
21	G162585		Screw		Appelez-nous	-
22	G189455-01		Handle Grip		Appelez-nous	-
23	G189451-01		Handle End-top		Appelez-nous	-
24	G189452-01		Handle End-bottom		Appelez-nous	-
25	G185566		Screw		Appelez-nous	-
14A	G188218		Push Nut (6) (non-illustrated)		Appelez-nous	-
16A	G162585		Screw		Appelez-nous	-
1A	G152308-01		Door Plug-bottom (non-illustrated)		Appelez-nous	-
22A	G189456-03		Insert-grip (non-illustrated)		Appelez-nous	-
22B	G191430		Spacer-handle (non-illustrated)		Appelez-nous	-
22C	G172321		Screw-spacer Mtg (2) (non-illustrated)		Appelez-nous	-
22D	3016230		Anchor Nut (2) (non-illustrated)		Appelez-nous	-
