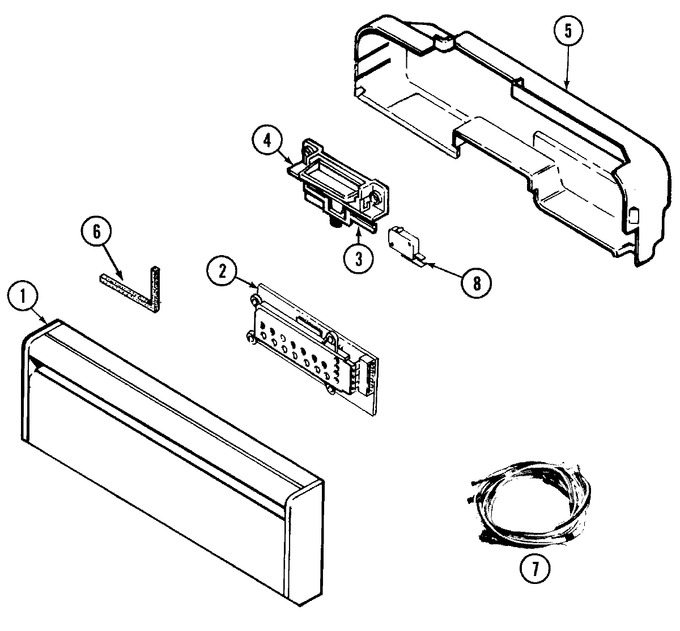

01 - Control Panel (du20jv)
02 - Door (du20jv)
03 - Pump & Motor (du20jv)
04 - Racks (du20jv)
05 - Rinse Aid & Soap Disp. (du20jv)
06 - Tub (du20jv)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A2 |
|
Immediately | $ 6.90 | |||
| 1 | 99001015 | Panel, Control (wht) | A2 |
|
- | ||||
| 1 | 99001389 | Panel, Control (wht) | 28 |
|
- | ||||
| 2 | 903925 | Pcb & Mtg. Plate Assy. | A2 |
|
- | ||||
| 2 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A2 |
|
Immediately | $ 6.90 | |||
| 2 | 913179 | Shield, Control | A2 |
|
- | ||||
| 3 | 12001118 | Kit, Latch Handle (wht) | A9 |
|
- | ||||
| 3 | Y912945 | Handle, Latch | A2 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A2 |
|
Immediately | $ 6.90 | |||
| 4 | Y912664 | Holder, Door Switch | A2 |
|
$ 38.66 | ||||
| 5 | Y912937 | Barrier, Control Panel | A2 |
|
- | ||||
| 6 | Y913177 | Seal, Vent Outlet | A2 |
|
- | ||||
| 6 | Y913116 | Liner, Vent | A2 |
|
- | ||||
| 7 | 315471 | Retainer, Wire | A6 |
|
- | ||||
| 7 | 99001045 | Wire Harness, Main | A6 |
|
- | ||||
| 7 | 99001174 | Wire Harness, Main | B6 |
|
- | ||||
| 7 | Y903510 | Harness, Wire | A2 |
|
- | ||||
| 8 | 99002254 | Switch, Door (Replaces: 903086) | A2 |
|
$ 116.79 | ||||
| 9 | 913015 | Manual, Use & Care | A2 |
|
- | ||||
| 9 | 99001063 | Manual, Use & Care (french) | B6 |
|
- |
