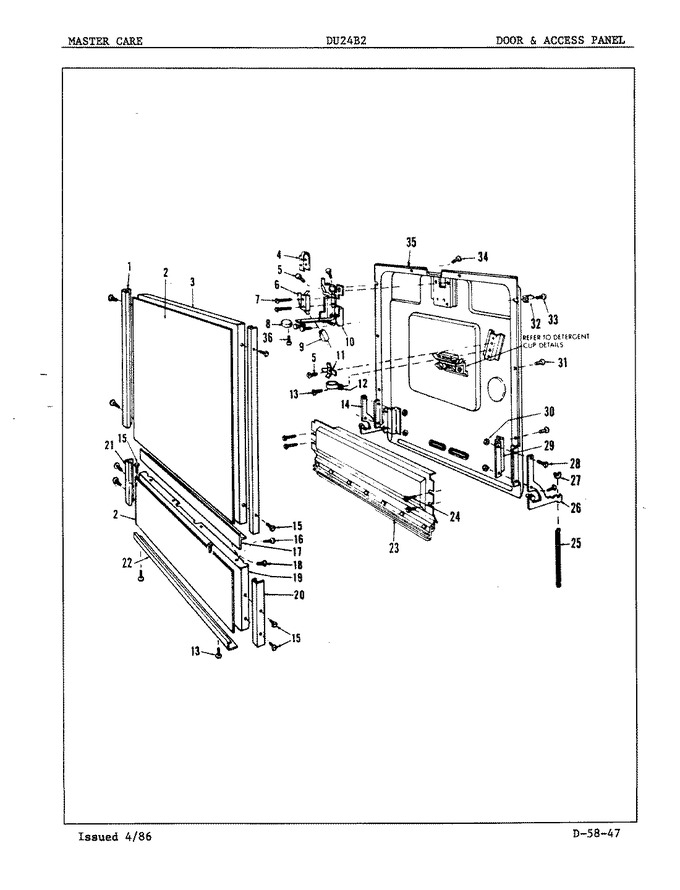

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808026 | Door Trim |
|
- | |||||
| 2 | 807706 | Access Panel |
|
- | |||||
| 2 | 807644 | Insert |
|
- | |||||
| 2 | COMM PART | Insert, Door Panel (Replaces: 807645) |
|
- | |||||
| 3 | 807262 | Outer Panel |
|
- | |||||
| 4 | 807450 | Switch Cover |
|
- | |||||
| 5 | 806830 | Screw |
|
- | |||||
| 6 | 807043 | Switch |
|
- | |||||
| 7 | 808425 | Screw |
|
- | |||||
| 8 | 806398 | Latch Knob |
|
- | |||||
| 9 | 806846 | Insulator |
|
- | |||||
| 10 | 807016 | Latch Asm |
|
- | |||||
| 11 | 807213 | Ground Terminal |
|
- | |||||
| 12 | 807212 | Clamp |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 803416) |
|
Immediately | $ 12.62 | ||||
| 14 | 805682 | Lh Arm |
|
- | |||||
| 15 | WP74004005 | Screw (Replaces: 807293) |
|
$ 6.95 | |||||
| 16 | WP12990527 | Screw (Replaces: 807784) |
|
Immediately | $ 7.15 | ||||
| 17 | COMM PART | Door Trim (Replaces: 807347) |
|
- | |||||
| 18 | 807501 | Screw |
|
- | |||||
| 19 | 807257 | Panel |
|
- | |||||
| 20 | 808028 | Rh Trim |
|
- | |||||
| 21 | 808029 | Lh Trim |
|
- | |||||
| 22 | 808027 | Bottom Trim |
|
- | |||||
| 23 | 5300809243 | Vent Plate (Replaces: 807044) |
|
$ 20.25 | |||||
| 24 | 806810 | Screw |
|
- | |||||
| 25 | 805683 | Door Spring |
|
- | |||||
| 26 | 805681 | Rh Arm |
|
- | |||||
| 27 | 805884 | Spring Pad |
|
- | |||||
| 28 | 803311 | Screw |
|
- | |||||
| 29 | COMM PART | Arm Bracket (Replaces: 806717) |
|
- | |||||
| 30 | 800928 | Nut |
|
- | |||||
| 31 | 806967 | Screw |
|
- | |||||
| 32 | 807449 | Door Guide |
|
- | |||||
| 33 | 806926 | Truss Hd. Cad. Pl. |
|
- | |||||
| 34 | 806894 | Screw |
|
- | |||||
| 35 | 807191 | Inner Panel |
|
- | |||||
| 36 | 808715 | Screw |
|
- |
