Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 806402 Lh End Cap Appelez-nous -
3 807665 Switch Appelez-nous -
4 807094 Timer Knob Appelez-nous -
5 805324 Screw Appelez-nous -
6 808245 Control Panel Appelez-nous -
7 806401 Rh End Cap Appelez-nous -
8 805323 Spacer Appelez-nous -
9 808134 Timer Appelez-nous -
10 806972 Timer Guard Appelez-nous -
11 W11233072 Screw   (Replaces: 803416) In-Stock Immediately $ 12.62

12 806894 Screw Appelez-nous -
13 807425 Splash Pan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

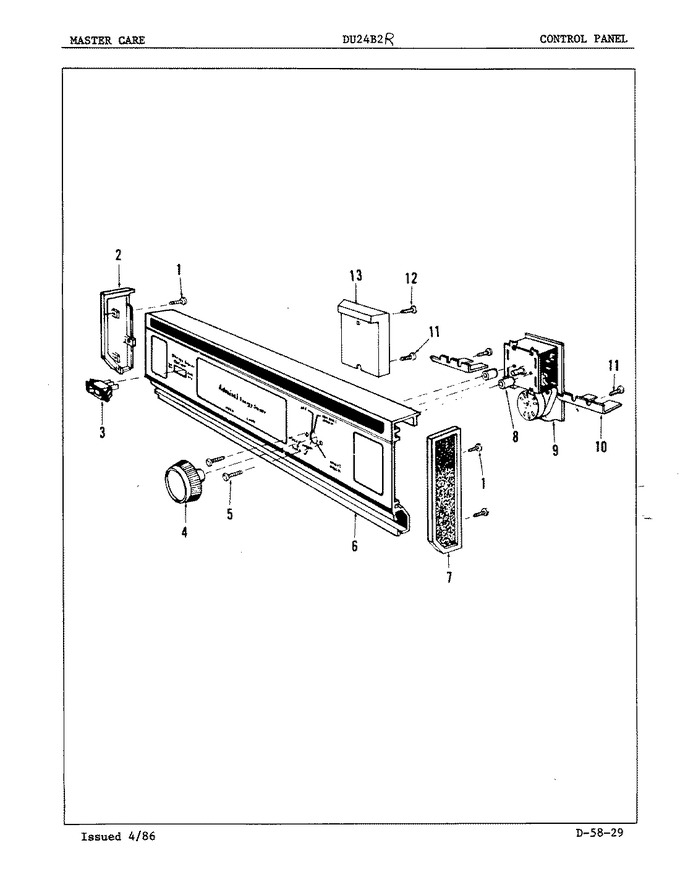

Diagram for DU24B2R
