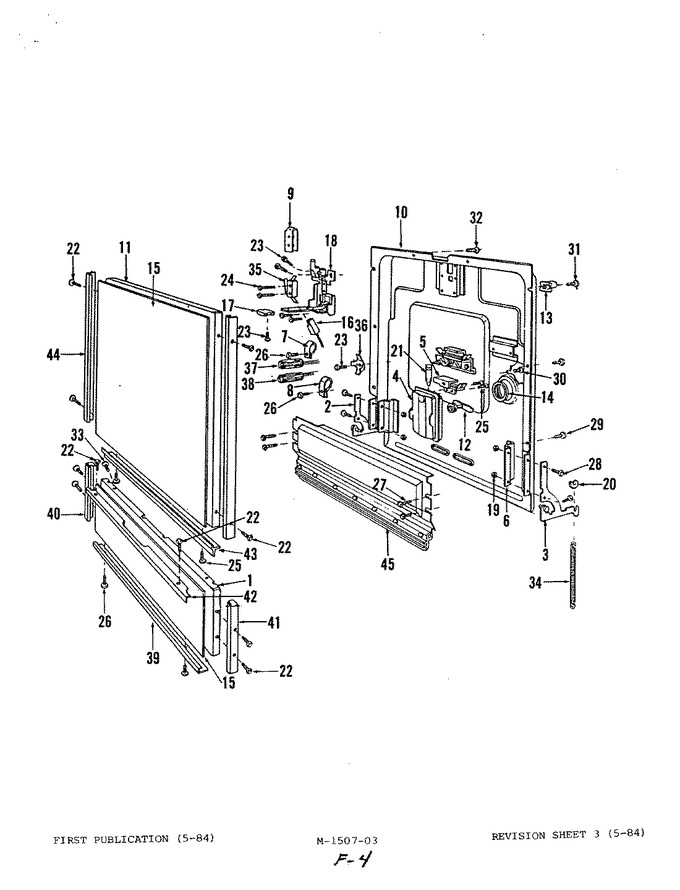

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807257		Panel		Appelez-nous	-
2	805682		Lh Arm		Appelez-nous	-
3	805681		Rh Arm		Appelez-nous	-
6	COMM PART		Arm Bracket   (Replaces: 806717)		Appelez-nous	-
8	808442		Wire Clamp		Appelez-nous	-
9	807450		Switch Cover		Appelez-nous	-
10	807191		Inner Panel		Appelez-nous	-
11	807262		Outer Panel		Appelez-nous	-
13	807449		Door Guide		Appelez-nous	-
15	808404		Panel Insert		Appelez-nous	-
16	806846		Insulator		Appelez-nous	-
17	806893		Knob		Appelez-nous	-
18	807016		Latch Asm		Appelez-nous	-
19	M0282009		Locknut   (Replaces: 808470)				$ 12.06
20	805884		Spring Pad		Appelez-nous	-
22	WP74004005		Screw   (Replaces: 807293)				$ 6.95
23	806830		Screw		Appelez-nous	-
24	808425		Screw		Appelez-nous	-
25	807501		Screw		Appelez-nous	-
26	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
27	806810		Screw		Appelez-nous	-
28	803311		Screw		Appelez-nous	-
29	806967		Screw		Appelez-nous	-
31	806976		Screw		Appelez-nous	-
32	806894		Screw		Appelez-nous	-
33	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
34	805683		Door Spring		Appelez-nous	-
35	807043		Switch		Appelez-nous	-
36	807213		Ground Terminal		Appelez-nous	-
39	808027		Bottom Trim		Appelez-nous	-
40	808029		Lh Trim		Appelez-nous	-
41	808028		Rh Trim		Appelez-nous	-
42	808346		Acc Pnl Trim		Appelez-nous	-
43	COMM PART		Door Trim   (Replaces: 807347)		Appelez-nous	-
44	808026		Door Trim		Appelez-nous	-
45	5300809243		Vent Baffle   (Replaces: 808369)				$ 20.25
