01 - Cabinet


02 - Door


03 - Liner


04 - Unit

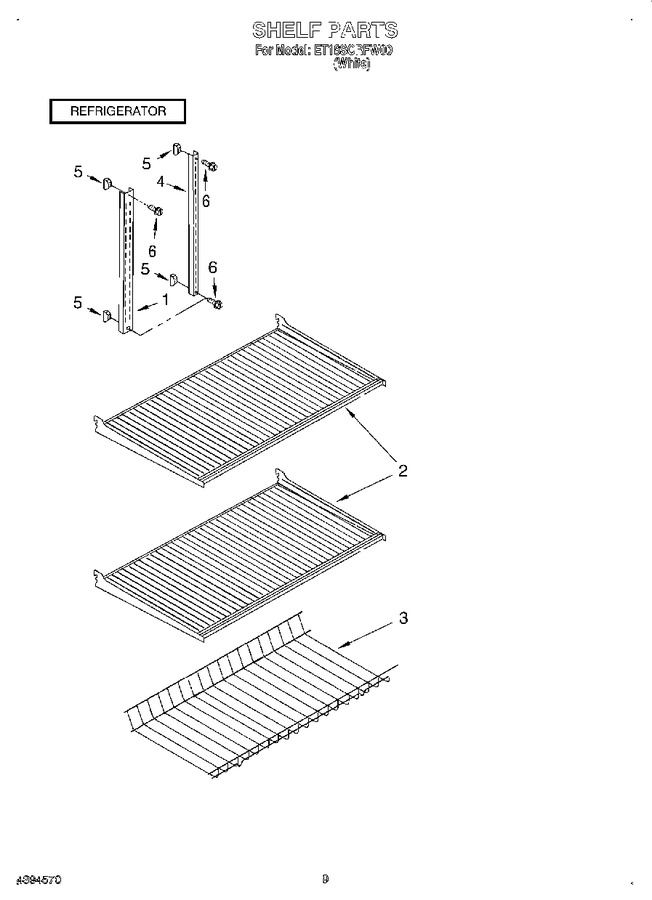

05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163826		Shelf, Ladder Center		Appelez-nous	-
2	2163856		Shelf (2)		Appelez-nous	-
3	2166210		Trivet		Appelez-nous	-
4	2163756		Shelf, Ladder (2)		Appelez-nous	-
5	520965		Screw, Support				$ 31.35
6	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
6	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
6	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
6	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
6	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
6	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
6	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
6	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
6	2172516		Door Reversal Instructions		Appelez-nous	-
6	350942		Primer White (13 Oz. Spray Can)				$ 94.14
6	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
6	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
6	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
6	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
6	833938		Kit, Terminal Connector				$ 8.47
6	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
6	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
6	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
6	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
6	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
6	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
6	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
6	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
6	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
6	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	1117510		Torx Key				$ 5.84
	LIT2195481		Service & Wiring Sheet		Appelez-nous	-
	LIT2195584		Energy Label		Appelez-nous	-
	LIT2195369		Use & Care Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
