02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Ice Maker Installatio


10 - System And Automatic Defrost Parts

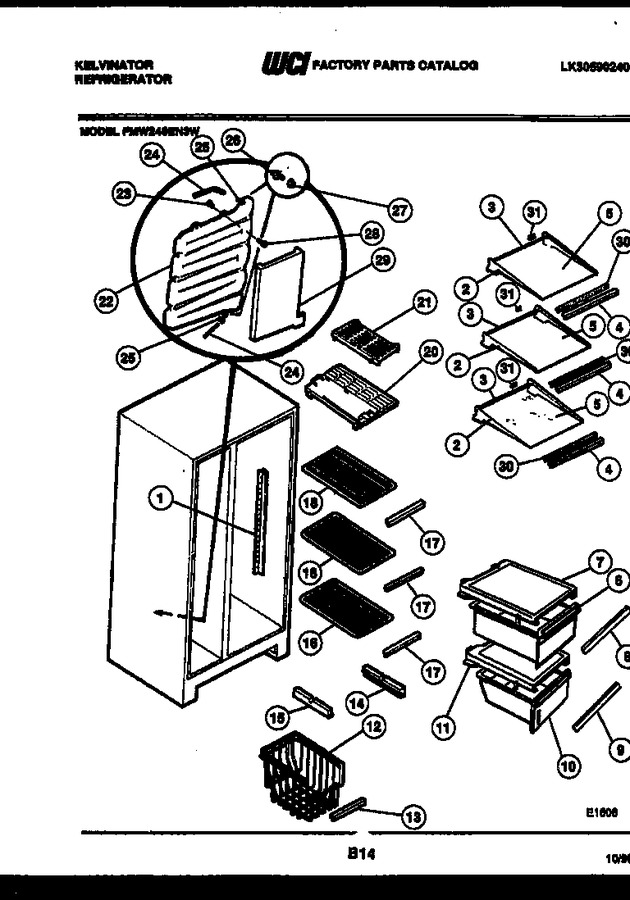

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G170694		Channel-rs & Ls		Appelez-nous	-
2	5303209744		Frame-shelf (4)		Appelez-nous	-
3	5303209743		Trim-shelf Rear (4)		Appelez-nous	-
4	5303211388		Trim-shelf Front (4)		Appelez-nous	-
5	5303211389		Glass-shelf (4)		Appelez-nous	-
6	3015085		Pan-storage Upper		Appelez-nous	-
7	G169711-01		Cover-pan Upper		Appelez-nous	-
8	3015076		Trim-pan Upper		Appelez-nous	-
9	3015076		Trim-pan Lower		Appelez-nous	-
10	3015125		Pan-storage Lower		Appelez-nous	-
11	G169724-01		Cover-pan-lower		Appelez-nous	-
12	G171687		Basket-freezer		Appelez-nous	-
13	3017909		Trim-basket		Appelez-nous	-
14	G168986		Hanger-basket Rs		Appelez-nous	-
15	G168987		Hanger-basket Ls		Appelez-nous	-
16	5303207191		Shelf-freezer-bottom		Appelez-nous	-
17	3017910		Trim-shelf (3)		Appelez-nous	-
18	5303207192		Shelf-freezer-center (2)		Appelez-nous	-
20	G174571-01		Shelf-plastic-lower		Appelez-nous	-
21	G174556-01		Shelf-plastic-upper		Appelez-nous	-
22	G186055		Tank-water		Appelez-nous	-
23	G163938		Support-tank (3)		Appelez-nous	-
24	G185825-01		Tube-cut To Size (2)		Appelez-nous	-
25	G166705		Clamp-tube (2)		Appelez-nous	-
26	G186058		Connector-tube (2)		Appelez-nous	-
27	G186057		Grommet-tank (2)		Appelez-nous	-
28	G163308		Screw (3)		Appelez-nous	-
29	G163295-02		Cover-water Tank		Appelez-nous	-
30	5303209742		Retainer Shelf		Appelez-nous	-
31	5303211351		Clip-rear Trim		Appelez-nous	-
12A	G167770-01		Screw-trim Mounting (2) (non-illustrated)		Appelez-nous	-
18A	G167565		Grommet-shelf Mounting (6) (non-illustrated)		Appelez-nous	-
1A	G166567		Screw-channel Mounting (8) (non-illustrated)		Appelez-nous	-
20A	G177706-02		Label-shelf-lower (non-illustrated)		Appelez-nous	-
21A	G177706-01		Label-shelf-upper (non-illustrated)		Appelez-nous	-
7A	G180108-03		Gasket-cover Upper (2) (non-illustrated)		Appelez-nous	-
