02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Ice Maker Installatio


10 - System And Automatic Defrost Parts

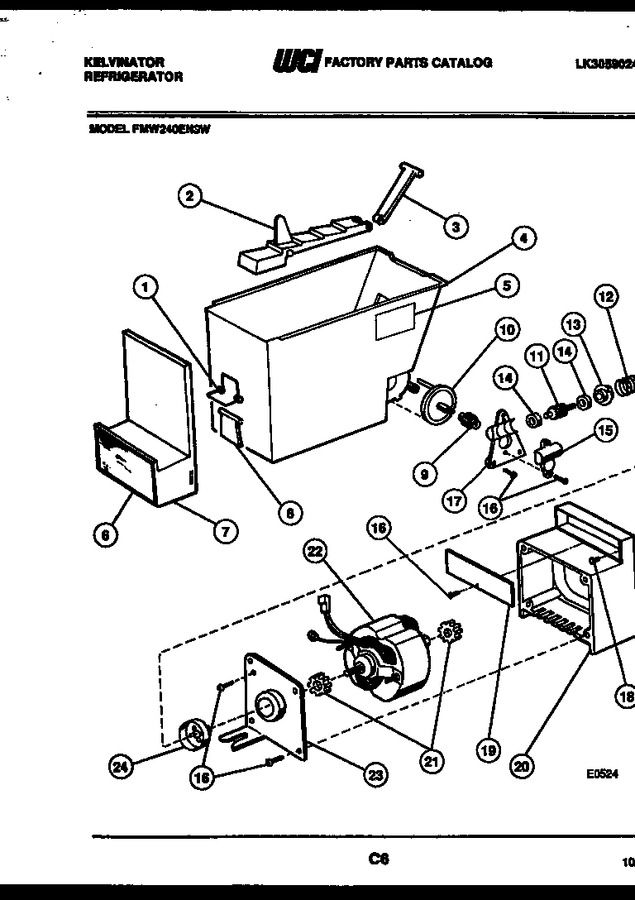

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G184853		Spring-ice Door		Appelez-nous	-
2	G174413-01		Ram-ice Dispenser		Appelez-nous	-
3	G177697-01		Deflector-ice Dispenser		Appelez-nous	-
4	G177213-01		Container, Ice		Appelez-nous	-
5	3016895		Label-ice Dispenser		Appelez-nous	-
6	3015134		Label-ice Container		Appelez-nous	-
7	3015828		Front-ice Container		Appelez-nous	-
8	G174407-01		Door-ice Container		Appelez-nous	-
9	G174702		Worm Gear-ice Ram		Appelez-nous	-
10	G177694		Disc, Ice Ram Drive		Appelez-nous	-
11	G174406		Worm-ice Ram		Appelez-nous	-
12	G174701		Spring-ice Dispenser Drive		Appelez-nous	-
13	G189278		Coupling-ice Dispenser Control		Appelez-nous	-
14	G177695		Bearing-rear (2)		Appelez-nous	-
15	G174412		Cover-housing Ice Ram		Appelez-nous	-
16	G177687		Screw (10)		Appelez-nous	-
17	G174408		Housing, Ice Ram Drive		Appelez-nous	-
18	G181104		Screw (2)		Appelez-nous	-
19	G177710		Cover-ice Dispenser Motor		Appelez-nous	-
20	G175019		Housing-ice Dispenser Motor		Appelez-nous	-
21	G177711		Grommet-ice Dispenser Motor (2)		Appelez-nous	-
22	3001111		Motor-ice Dispenser Ram		Appelez-nous	-
23	G174403		Bracket-ice Dispenser Motor		Appelez-nous	-
24	G174409		Coupling, Ice Dispenser Motor		Appelez-nous	-
