02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Ice Maker Installatio


10 - System And Automatic Defrost Parts

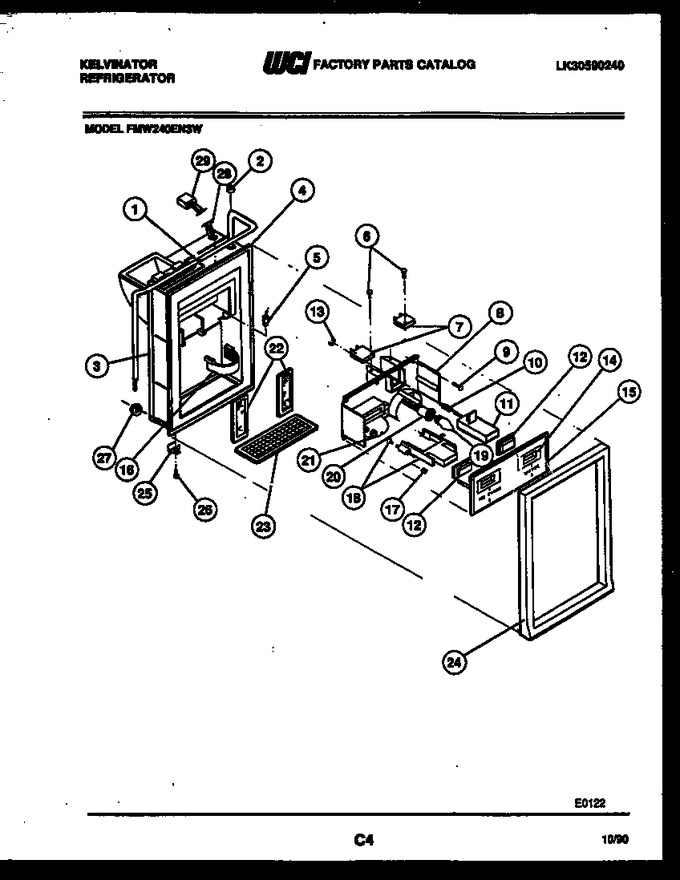

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G188233		Tube-water Inlet And Pilot Assembly		Appelez-nous	-
2	G175246		Grommet Water Tube		Appelez-nous	-
3	G182738		Heater-door Housing		Appelez-nous	-
4	G188308-03		Housing-door Panel		Appelez-nous	-
5	G179999		Clamp, Water Tube		Appelez-nous	-
6	G177686		Screw (4)		Appelez-nous	-
7	G185542		Switch Solenoid (2)		Appelez-nous	-
8	G185754		Plate-switch Mounting		Appelez-nous	-
9	G185567		Screw (4)		Appelez-nous	-
10	G174700		Spring, Water Actuator		Appelez-nous	-
11	G185063-01		Actuator, Water		Appelez-nous	-
12	G187106-01		Button Actuator (2)		Appelez-nous	-
13	G174411		Clip, Water Actuator		Appelez-nous	-
14	3015128		Label-front Panel		Appelez-nous	-
15	G182643-01		Front Panel		Appelez-nous	-
16	G180004-01		Skirt Ice Deflector		Appelez-nous	-
17	G174414		Screw-adjusting		Appelez-nous	-
18	G190359		Ice Actuator Assembly		Appelez-nous	-
19	G187180		Light Bulb		Appelez-nous	-
20	G177729		Socket-light Bulb		Appelez-nous	-
21	G177724		Anchor-stud (2)		Appelez-nous	-
22	G182929		Pan-fill (2)		Appelez-nous	-
23	G182551-01		Grid, Water Spill		Appelez-nous	-
24	G182518-02		Frame-door Housing		Appelez-nous	-
25	G179966		Clip-housing Frame		Appelez-nous	-
26	G179974		Screw-clip Mounting (2)		Appelez-nous	-
27	G188218		Palnut-self Thd. (12) Threading (2)		Appelez-nous	-
28	G185226		Wiring Harness-freezer Door		Appelez-nous	-
29	G177742		Plug-harness Bottom		Appelez-nous	-
*14510	G186533-01		Diode Kit		Appelez-nous	-
