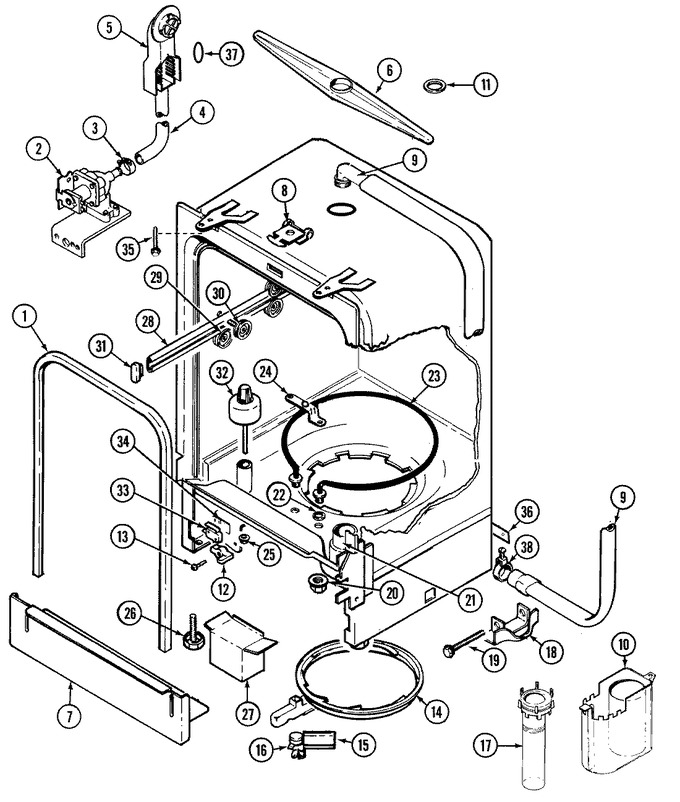

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP902894 | Seal, Door (Replaces: 902894) | 11 |
|
Immediately | $ 78.23 | |||
| 2 | WP489128 | Screw (Replaces: 912365) | 11 |
|
$ 9.79 | ||||
| 2 | 903868 | Valve, Water | 11 |
|
- | ||||
| 3 | WP596669 | Clamp, Spring (Replaces: 911856) | 11 |
|
Immediately | $ 7.56 | |||
| 4 | 912633 | Hose, Injector | 11 |
|
$ 62.76 | ||||
| 5 | 912533 | Injector, Water | 11 |
|
$ 35.89 | ||||
| 6 | 903474 | Arm, Spray (upper) | 11 |
|
- | ||||
| 7 | 912640 | Panel, Toe (blk) | 11 |
|
- | ||||
| 7 | WP6-912366 | Screw (Replaces: 912366) | 11 |
|
$ 7.29 | ||||
| 8 | 912649 | Hook, Latch | 11 |
|
- | ||||
| 8 | 912648 | Spring, Latch | 11 |
|
- | ||||
| 8 | 912650 | Retainer, Latch | 11 |
|
- | ||||
| 8 | Y912873 | Screw, Latch | 11 |
|
- | ||||
| 9 | 912647 | Hose, Top Shower | 11 |
|
$ 63.93 | ||||
| 10 | Y913095 | Vent, Inlet | 11 |
|
- | ||||
| 11 | 910069 | Washer, Tub Top | 11 |
|
$ 35.86 | ||||
| 12 | 912014 | Lever, Actuator | 11 |
|
$ 52.13 | ||||
| 13 | 912015 | Pin, Lever Pivot | 11 |
|
- | ||||
| 14 | Y912686 | Ring, Locking | 11 |
|
- | ||||
| 15 | 99001008 | Clip, Thermostat | 11 |
|
- | ||||
| 15 | 99001007 | Plug, Thermostat | 11 |
|
- | ||||
| 16 | 99001006 | Thermostat, Limiting | 11 |
|
- | ||||
| 17 | Y913096 | Tube, Inlet | 11 |
|
- | ||||
| 18 | 912651 | Bracket, Adjusting | 11 |
|
- | ||||
| 19 | 912613 | Screw, Adjusting Bracket | 11 |
|
- | ||||
| 20 | 99001333 | Sleeve, Insulating | 11 |
|
- | ||||
| 20 | 912645 | Nut, Heating Element | 11 |
|
- | ||||
| 21 | Y912659 | Cap, Air Inlet | 11 |
|
- | ||||
| 21 | 912622 | Screw | 11 |
|
- | ||||
| 22 | 910603 | Washer, Heating Element | 11 |
|
- | ||||
| 23 | 903096 | Element, Heating | 11 |
|
- | ||||
| 24 | Y912541 | Bracket, Heating Element | 11 |
|
- | ||||
| 25 | 911265 | Palnut, Float | 11 |
|
$ 5.83 | ||||
| 26 | WPW10143258 | Leg, Leveling (Replaces: 912579) | 11 |
|
$ 13.81 | ||||
| 27 | 4396672 | Clamp, Cable (Replaces: 400321) | 11 |
|
Immediately | $ 17.38 | |||
| 27 | 912563 | Box, Terminal | 11 |
|
- | ||||
| 28 | Y912545 | Track, Rack | 11 |
|
$ 40.33 | ||||
| 29 | 912548 | Wheel, Tub | 11 |
|
- | ||||
| 30 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 11 |
|
$ 6.90 | ||||
| 30 | WP99002947 | Shaft, Tub Wheel (Replaces: 912549) | 11 |
|
Immediately | $ 10.58 | |||
| 31 | WP99002136 | Stop, Rack (Replaces: 912938) | 11 |
|
$ 12.78 | ||||
| 32 | WP99002363 | Float (Replaces: Y912687) | 11 |
|
$ 7.42 | ||||
| 33 | 912012 | Screw | 11 |
|
- | ||||
| 33 | 900882 | Switch, Water Level | 11 |
|
- | ||||
| 34 | WP489128 | Screw (Replaces: 912365) | 11 |
|
$ 9.79 | ||||
| 34 | 912656 | Bracket, Water Level Switch | 11 |
|
- | ||||
| 35 | WP489491 | Screw, Cabinet Mount (Replaces: 912799) | 11 |
|
$ 6.26 | ||||
| 36 | 912654 | Strap, Support | 11 |
|
$ 5.27 | ||||
| 37 | 912644 | Seal Ring, Injector | 11 |
|
$ 7.59 | ||||
| 38 | WP616099 | Clamp, Hose (1 1/4``) (Replaces: 904030) | 11 |
|
Immediately | $ 7.03 |
