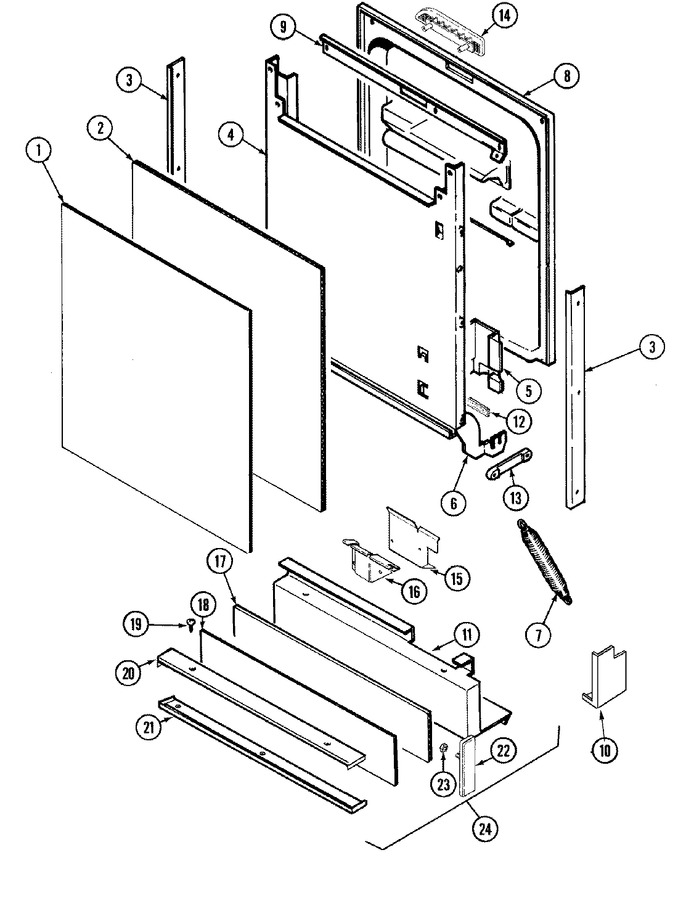

01 - Door
02 - Pump & Motor
03 - Racks
04 - Soap Dispenser
05 - Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y913165 | Insert, Front Panel (wht/alm) | A0 |
|
- | ||||
| 1 | Y912955 | Trim, Bottom (wht) | A0 |
|
- | ||||
| 2 | Y913184 | Filler, Front Panel | A0 |
|
- | ||||
| 3 | 99001235 | Trim, Strip (wht) | B4 |
|
- | ||||
| 3 | Y912962 | Trim, Panel | A0 |
|
- | ||||
| 3 | 99001351 | Trim, Side (wht) | 28 |
|
$ 66.87 | ||||
| 3 | 912619 | Screw, Steel | A0 |
|
$ 11.60 | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 4 | 904028 | Panel, Door | A0 |
|
- | ||||
| 5 | Y912666 | Retainer, Wire | A0 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 6 | 99001075 | Screw | A0 |
|
$ 5.81 | ||||
| 6 | 903071 | Hinge (rt) | A0 |
|
- | ||||
| 6 | 903070 | Hinge (lt) | A0 |
|
- | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | A0 |
|
Immediately | $ 9.00 | |||
| 8 | Y912918 | Door, Inner | A0 |
|
- | ||||
| 8 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 8 | 99001549 | Door, Inner (non Rinse-aid) | 29 |
|
- | ||||
| 9 | Y913093 | Bar, Reinforcement | A0 |
|
- | ||||
| 9 | Y913178 | Seal, Reinforcement | A0 |
|
$ 7.50 | ||||
| 11 | 912636 | Panel, Access (blk) | A0 |
|
- | ||||
| 11 | 99001234 | Panel, Access (wht) | B4 |
|
- | ||||
| 11 | 99001194 | Screw, Access Panel | B4 |
|
$ 6.18 | ||||
| 11 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 12 | 903233 | Foam Strip, Insulation | A0 |
|
- | ||||
| 13 | WP912653 | Link, Door Spring (Replaces: 912653) | A0 |
|
Immediately | $ 7.45 | |||
| 14 | Y912910 | Cover, Vent | A0 |
|
$ 30.43 | ||||
| 14 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 15 | 912641 | Shield, Tub (blk) | A0 |
|
- | ||||
| 15 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 15 | 99001131 | Shield, Tub (wht) | B4 |
|
- | ||||
| 16 | 99001132 | Cover, Wire (wht) | B4 |
|
- | ||||
| 16 | 912642 | Cover, Wire (blk) | A0 |
|
- | ||||
| 16 | 99001194 | Screw, Access Panel | B4 |
|
$ 6.18 | ||||
| 17 | 912525 | Filler, Access Panel | A0 |
|
- | ||||
| 18 | Y913164 | Insert, Access Panel (wh/al) | A0 |
|
- | ||||
| 19 | WP912618 | Screw (Replaces: 912618) | A0 |
|
$ 6.98 | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | A0 |
|
$ 9.79 | ||||
| 20 | 912956 | Trim, Panel (top) | A0 |
|
- | ||||
| 21 | Y912957 | Trim, Panel (bottom) | A0 |
|
- | ||||
| 22 | 912958 | End Cap, Access Panel (wht) | A0 |
|
- | ||||
| 23 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 24 | 903942 | Panel, Access | A0 |
|
- |
