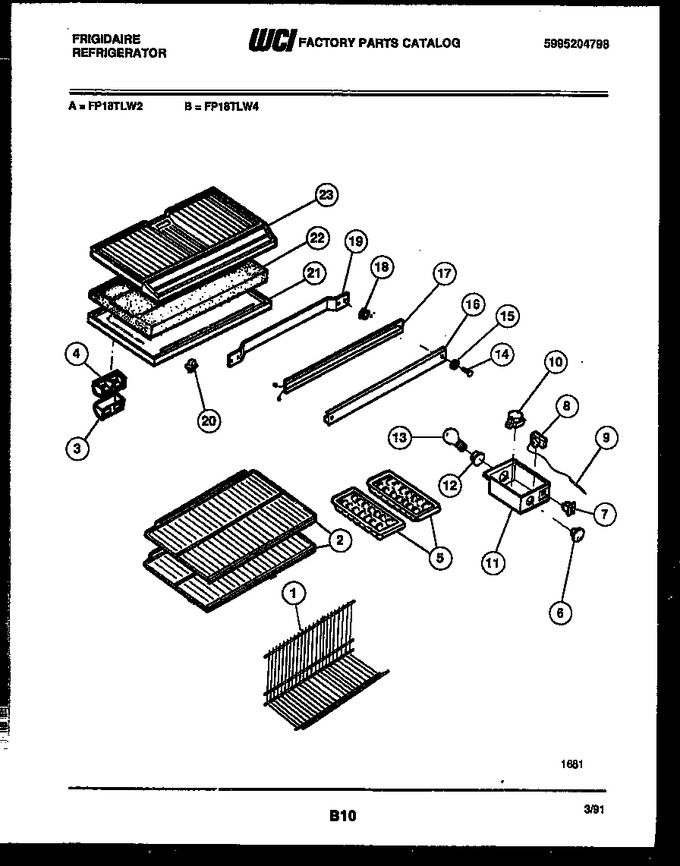

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207181 | Trivet |
|
- | |||||
| 2 | 08009921 | Shelf-sliding (2) |
|
- | |||||
| 3 | 5308000071 | Deflector-air |
|
- | |||||
| 4 | 5303001546 | Cover, Deflector |
|
- | |||||
| 5 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 6 | 5308010011 | Knob-control |
|
- | |||||
| 7 | 3201560 | Switch-energy |
|
- | |||||
| 8 | 5303200810 | Control-temp |
|
$ 126.87 | |||||
| 9 | 5303916855 | Tube-plastic |
|
$ 60.96 | |||||
| 10 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 11 | 3201528 | Control Box |
|
- | |||||
| 12 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 13 | 5303001179 | Light Bulb |
|
- | |||||
| 14 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 15 | 5303206754 | Washer-mullion (2) |
|
- | |||||
| 16 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 17 | 5303210351 | Heater-mullion |
|
- | |||||
| 18 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 19 | 5308010008 | Strap-mullion |
|
- | |||||
| 20 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 21 | 5303016367 | Top-refrigerator |
|
- | |||||
| 22 | 5303001504 | Divider |
|
- | |||||
| 23 | 5303211427 | Bottom - Freezer |
|
- | |||||
| *42432 | 3001383 | Harness-divider |
|
- | |||||
| 10A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 11A | 08009816 | Label-control Box (non-illustrated) |
|
- | |||||
| 21A | 5303001380 | Screw |
|
- | |||||
| 8A | 5303001260 | Screw |
|
$ 6.73 |
