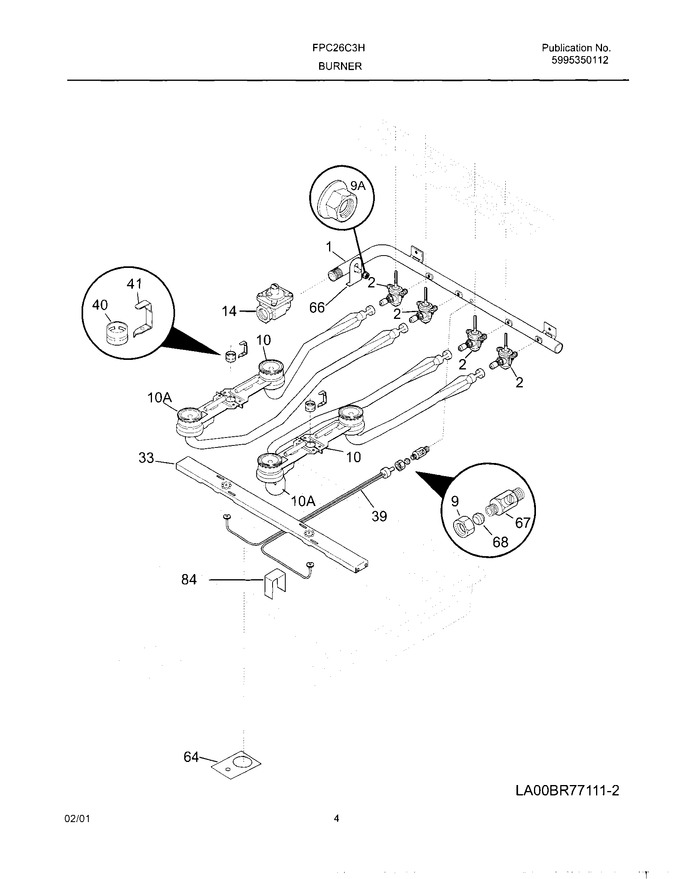

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177403		Manifold		Appelez-nous	-
2	318087010		Valve-top Burner		Appelez-nous	-
9	5303311307		Nut,angle ,4-20		Appelez-nous	-
9	318147100		Nut, Compression		Appelez-nous	-
10	318176311		Burner Top Left		Appelez-nous	-
10	318176310		Burner Top Front,front		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
33	5303294772		Channel-burner Support		Appelez-nous	-
39	318147200		Tubing-top Pilot		Appelez-nous	-
40	5304415292		Cap Top Pilot		Appelez-nous	-
41	3202798		Shield-pilot, Stainless Steel, (2)				$ 55.18
64	5303294750		Retainer/bracket		Appelez-nous	-
66	5303294765		Angle, Manifold Pipe, Mtg		Appelez-nous	-
67	318147000		Filter, Top Pilot		Appelez-nous	-
68	318146100		Ferrule		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
84	5303294763		Bracket,support		Appelez-nous	-
NI	316048200		Screw,hex Washer Head ,1/4-20 X 0.31 ,valve Mounting,w/gasket		Appelez-nous	-
NI	5304403070		Screw		Appelez-nous	-
NI	5303324191		Washer,flat		Appelez-nous	-
NI	5303311532		Screw, Back		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
