SELECT A DIAGRAM

01 - Cover


03 - Cooktop

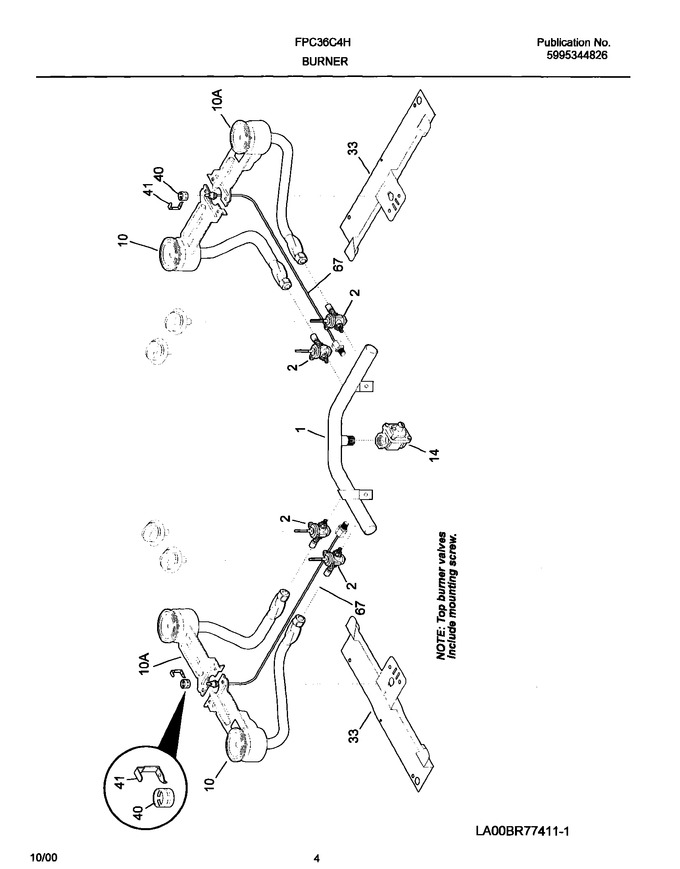

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303294442		Manifold Pipe		Appelez-nous	-
33	3016992		Bracket-burner Mtg		Appelez-nous	-
40	5304415292		Cap Top Pilot		Appelez-nous	-
41	3202798		Shield - Pilot				$ 55.18
67	5303305543		Pilot, Tube		Appelez-nous	-
F10	318176410		Burner-top,lf & Rr		Appelez-nous	-
F10A	318176411		Burner-top,rf & Lr		Appelez-nous	-
F14	5308007974		Regulator-pressure				$ 309.02
F2	318087030		Valve-top Burner		Appelez-nous	-
NI	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
NI	5303324191		Washer		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
