01 - Cover

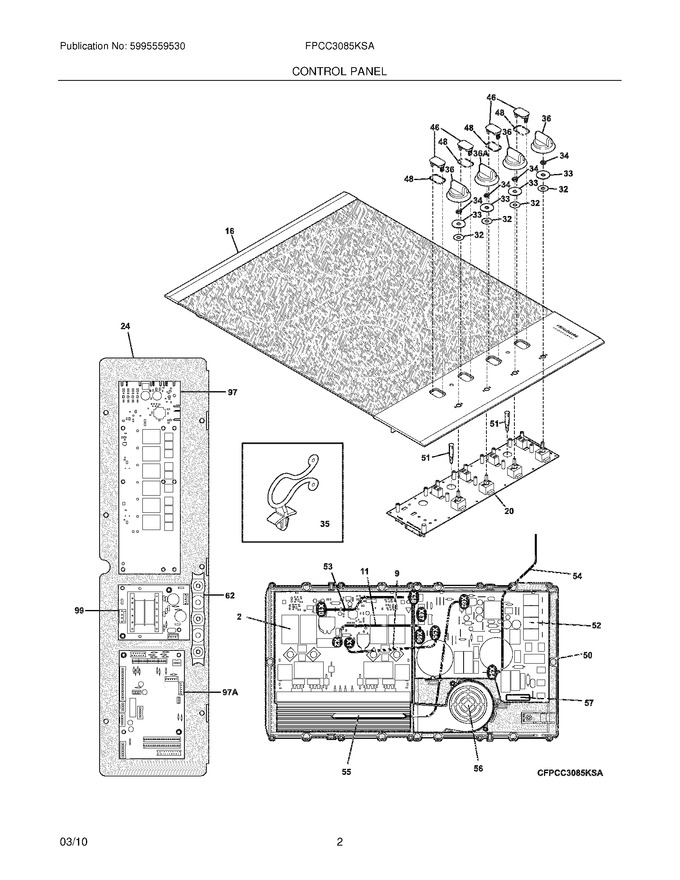

03 - Control Panel
05 - Maintop/surface Units
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318079241 | Main Top Assembly,glass ,black/stainless,w/trim & Frame |
|
$ 523.37 | |||||
| 24 | 318567500 | Panel,service |
|
- | |||||
| 32 | 318086007 | Washer,flat ,(4) ,control |
|
$ 9.93 | |||||
| 33 | 318146012 | Bushing,control ,(4) |
|
$ 15.60 | |||||
| 34 | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 35 | 216273000 | Clip,wire Retainer |
|
$ 22.42 | |||||
| 36 | 316564609 | Knob,control ,stainless ,single |
|
$ 132.51 | |||||
| 46 | 318319020 | Lens,indicator Light ,(6) |
|
$ 31.90 | |||||
| 48 | 318337101 | Gasket,o`ring ,(4) |
|
$ 4.83 | |||||
| 36A | 316564612 | Knob,control ,stainless ,dual |
|
$ 61.06 | |||||
| F11 | 318052579 | Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56 |
|
- | |||||
| F2 | 318347100 | Generator,circuit Board ,(2) ,2 Zone |
|
$ 512.24 | |||||
| F20 | 316543604 | Board,user Interface ,rotary ,w/potentiometer |
|
$ 335.79 | |||||
| F50 | 318329620 | Housing Assembly,induction ,small ,w/electronics |
|
$ 765.03 | |||||
| F51 | 318250409 | Light,indicator ,white |
|
$ 203.12 | |||||
| F52 | 318347010 | Filter,circuit Board ,small |
|
$ 769.61 | |||||
| F53 | 318348002 | Communication Cable,generator ,8`` ,to Filter,x10/x58 |
|
- | |||||
| F54 | 318052578 | Ground Wire,x54/6 |
|
- | |||||
| F55 | 318349910 | Thermal Cut-out,long |
|
- | |||||
| F56 | 318346910 | Cooling Fan Assembly,small |
|
$ 679.21 | |||||
| F57 | 318373300 | Fuse,fast Blow ,20a |
|
$ 59.54 | |||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F9 | 318052580 | Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55 |
|
- | |||||
| F97 | 318388400 | Board,relay |
|
$ 235.31 | |||||
| F97A | 316442069 | Board,power ,uib |
|
$ 216.46 | |||||
| F99 | 316435703 | Board,power Supply |
|
Immediately | $ 394.48 | ||||
| FNI | 318402376 | Harness,wiring ,main ,w/magnetic Core |
|
$ 154.77 | |||||
| FNI | 318532141 | Ground Wire,5.5`` |
|
- | |||||
| FNI | 5304517813 | Harness,wiring ,condensator ,w/3 Capacitors (Replaces: 318231879) |
|
$ 35.44 | |||||
| FNI | 318402374 | Wiring Harness,interface ,uib Board ,to Control Brd |
|
$ 221.85 | |||||
| NI | 5304462994 | Screw,8-32 X 5/16 |
|
- | |||||
| NI | 5304450850 | Screw,7-19 X 1/2`` |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5304468081 | Screw,mouinting ,6-32 X 3/8 ,(18) |
|
$ 9.92 | |||||
| NI | 5304475957 | Support,power Board ,(2) |
|
- | |||||
| NI | 5304475958 | Standoff,hex ,power Board ,(2) |
|
$ 9.93 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303325170 | Nut,keps ,8-32 ,(2) |
|
- |
