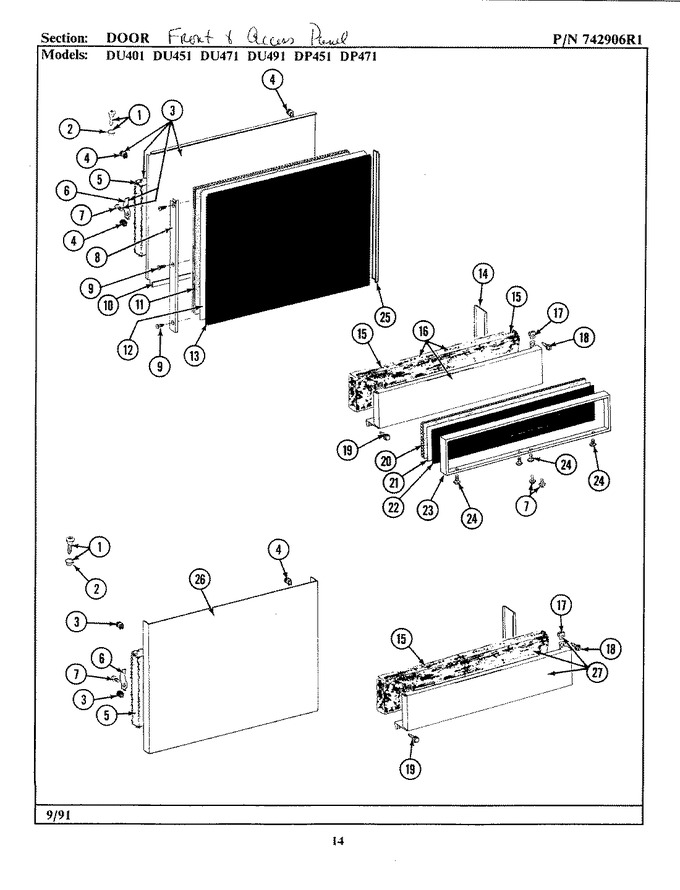

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901433		Screw And Washer Assembly	-	Appelez-nous	-
2	912006		Washer	-	Appelez-nous	-
3	901841		Front Panel Assembly	-	Appelez-nous	-
4	912005		Grommet	-	Appelez-nous	-
5	911915		Insulation For Front Panel	-	Appelez-nous	-
6	911875		Grounding Clip	-	Appelez-nous	-
7	WP4312464		Screw   (Replaces: 912197)	-			$ 6.26
8	911945		Trim Strip - Left Hand	-	Appelez-nous	-
9	912011		Screw----na	-	Appelez-nous	-
10	902164		Lower Trim Kit	-	Appelez-nous	-
11	911946		Filler For Front Panel	-	Appelez-nous	-
12	911924		Insert-almond/harvest Wheat	-	Appelez-nous	-
13	912200		Insert-almond/black	-	Appelez-nous	-
13	911928		Insert-white/black	-	Appelez-nous	-
14	911426		Access Panel Barrier	-	Appelez-nous	-
15	902119		Insulation For Access Panel	-	Appelez-nous	-
16	901820		Access Panel Assembly	-	Appelez-nous	-
17	910646		Fastener	-	Appelez-nous	-
18	911814		Screw	-	Appelez-nous	-
19	W11233072		Screw   (Replaces: 910647)	-		Immediately	$ 12.62
20	911947		Filler For Access Panel	-	Appelez-nous	-
21	911925		Insert-almond/harvest Wheat	-	Appelez-nous	-
22	912201		Insert-almond/black	-	Appelez-nous	-
22	911929		Insert-white/black	-	Appelez-nous	-
23	911604		Trim For Access Panel	-	Appelez-nous	-
24	WP90767		Screw   (Replaces: 210587)	-		Immediately	$ 7.04
25	911944		Trim Strip - Right Hand	-	Appelez-nous	-
