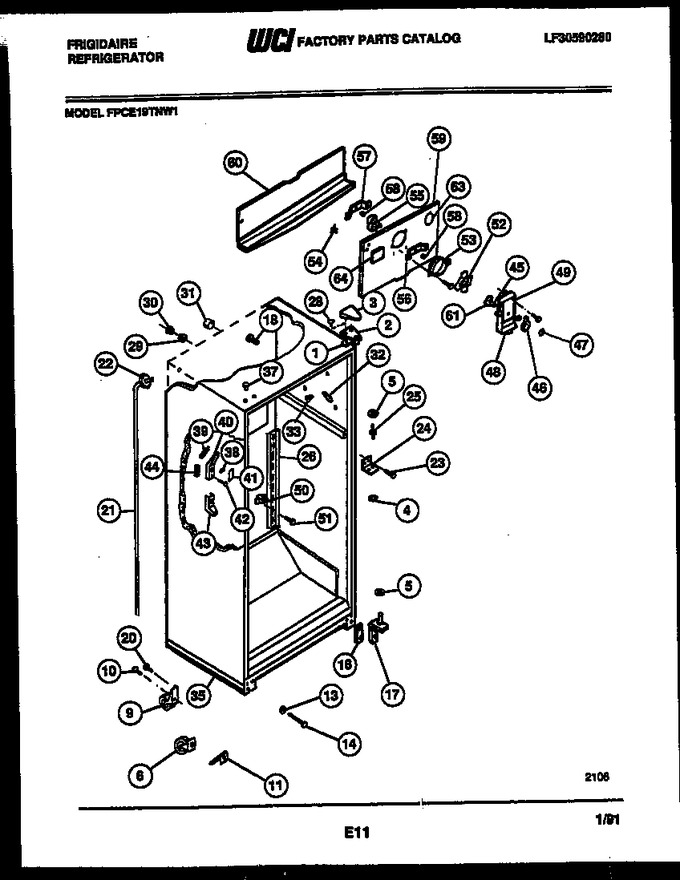

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 3 | 5308012820 | Hinge Cover, White |
|
- | |||||
| 4 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 5 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 6 | 5303212490 | Roller, Front (2) |
|
- | |||||
| 9 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 10 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 11 | 5308009790 | Spring, Roller Adj (2) |
|
$ 4.30 | |||||
| 13 | 5308011326 | Washer (2) |
|
$ 9.87 | |||||
| 14 | 5303212598 | Bolt-roller Adj (2) |
|
- | |||||
| 16 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 17 | 5303212489 | Bracket - Lower Hinge With Pin |
|
- | |||||
| 18 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5303210377 | Drain Tube & Ring Seal |
|
$ 109.31 | |||||
| 22 | 5303207353 | Ring - Seal |
|
$ 6.81 | |||||
| 23 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 24 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 25 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 26 | 5308000302 | Channel, Rh & Lh |
|
- | |||||
| 28 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 29 | 5303001286 | Ferrule-inner |
|
- | |||||
| 30 | 5303001287 | Ferrule-outer |
|
- | |||||
| 31 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 32 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 33 | 5304509705 | Grommet, Shelf (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 35 | 5303212487 | Base-cabinet |
|
- | |||||
| 37 | 5303001388 | Plug, White |
|
$ 2.60 | |||||
| 38 | 5303001445 | Damper, Control |
|
- | |||||
| 39 | 5308009764 | Insulation |
|
- | |||||
| 40 | 08009767 | Duct, Upper |
|
- | |||||
| 41 | 3200588 | Label, Duct |
|
- | |||||
| 42 | 5308016568 | Screw |
|
- | |||||
| 43 | 5303001443 | Duct, Lower |
|
- | |||||
| 44 | 5308009765 | Insulation |
|
- | |||||
| 45 | 5303001028 | Nut, Push |
|
- | |||||
| 46 | 5308009793 | Knob, Damper |
|
- | |||||
| 47 | 08009823 | Label, Damper |
|
- | |||||
| 48 | 08009817 | Cover, Fan |
|
- | |||||
| 49 | 08009924 | Label, Fan Cover |
|
- | |||||
| 50 | 5308000056 | Spout |
|
$ 11.66 | |||||
| 51 | 5503001361 | Pin-push (2) |
|
- | |||||
| 52 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 53 | 5308000124 | Ring, Orifice |
|
$ 53.58 | |||||
| 54 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 55 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 56 | 5303001226 | Bracket-front |
|
- | |||||
| 57 | 5303205119 | Bracket, Rear |
|
- | |||||
| 58 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 59 | 5308009771 | Cover, Coil |
|
- | |||||
| 60 | 5303001470 | Rough-drain |
|
- | |||||
| 61 | 5303001331 | Damper |
|
$ 31.71 | |||||
| 63 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| 64 | 5308013636 | Plug - Decorative Plug |
|
- | |||||
| *40091 | 5303212596 | Tapping Plate - Gusset Lower Lh |
|
- | |||||
| *40091 | 5303212597 | Tapping Plate - Gusset Lower Rh |
|
- | |||||
| *40091 | 5308012296 | Plate Tapping (2)-upper |
|
$ 47.44 | |||||
| 17A | 5303001320 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 18A | 5308016571 | Plug-freezer Liner (2) (non-illustrated) |
|
$ 4.79 | |||||
| 26A | 5308010253 | Screw-mounting (6) (non-illustrated) |
|
- | |||||
| 26B | 5303015409 | Channel - Center (non-illustrated) |
|
- | |||||
| 26C | 5308016568 | Screw-mounting (3) (non-illustrated) |
|
- | |||||
| 33A | 5304500407 | Grommet-shelf (2) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 54A | 5303210353 | Screw-bracket Mtg (non-illustrated) |
|
- | |||||
| 59A | 5303209814 | Nut 8-type U (non-illustrated) |
|
- | |||||
| 61A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
