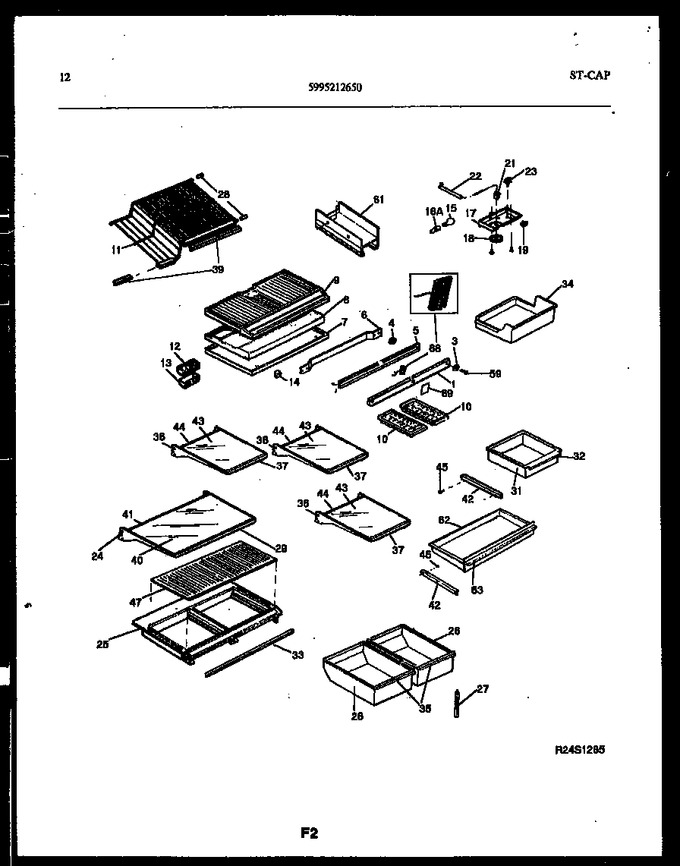

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | 3018873 | Pan, Crisper, Lh |
|
- | |||||
| 27 | 5303206507 | Support, Crisper Cvr, Adjustable |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303272550 | Trim-full Shelf, Snap-on |
|
- | |||||
| 31 | 3200572 | Pan, Meat |
|
- | |||||
| 32 | 5303272530 | Trim, Meat Pan |
|
- | |||||
| 33 | 5303200329 | Gasket - Crisper Cover |
|
- | |||||
| 34 | 5303212895 | Container, Ice |
|
- | |||||
| 35 | 5303272523 | Trim, Crisper Pan, Lh |
|
- | |||||
| 36 | 5303209869 | Shelf-half, Cantil, Refr, (3) |
|
- | |||||
| 37 | 5303272543 | Trim-half Shelf |
|
- | |||||
| 39 | 5303272521 | Trim-frzr Shelf, Small |
|
- | |||||
| 39 | 5303272524 | Trim-frzr Shelf, Large |
|
- | |||||
| 40 | 5303211964 | Shelf-glass, Full Shelf |
|
- | |||||
| 41 | 5303211962 | Trim-full Shelf, Rear |
|
- | |||||
| 42 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 43 | 5303211967 | Shelf-glass, Half Shelf |
|
- | |||||
| 44 | 5303211828 | Trim-half Shelf, Rear |
|
- | |||||
| 45 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 47 | 5303211968 | Insert-crisper Cover, Glass |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 61 | 08009824 | Compartment-ice Tray |
|
- | |||||
| 62 | 3200584 | Tray, Deli |
|
- | |||||
| 63 | 5303272557 | Trim-deli Tray |
|
- | |||||
| 68 | 5303211924 | Sensor, Door Ajar |
|
- | |||||
| 69 | 5303275727 | Label-door Ajar, Sensor |
|
- | |||||
| 26A | 3200571 | Pan-crisper, Rh |
|
- | |||||
| 26A | 5303200580 | Control - Humidity (non-illustrated) |
|
- | |||||
| 35A | 5303272529 | Trim, Crisper Pan, Rh |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- | |||||
| 41B | 5303211965 | Retainer/gasket, Full Shelf-frnt (non-illustrated) |
|
- | |||||
| 41C | 5303211966 | Gasket, Full Shelf-rear (non-illustrated) |
|
- | |||||
| 42A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 43A | 5303209263 | Retainer-glass (2) (non-illustrated) |
|
- | |||||
| 62A | 3200589 | Divider-deli Tray (non-illustrated) |
|
- | |||||
| 68A | 5303211925 | Retainer - Sensor (non-illustrated) |
|
- |
