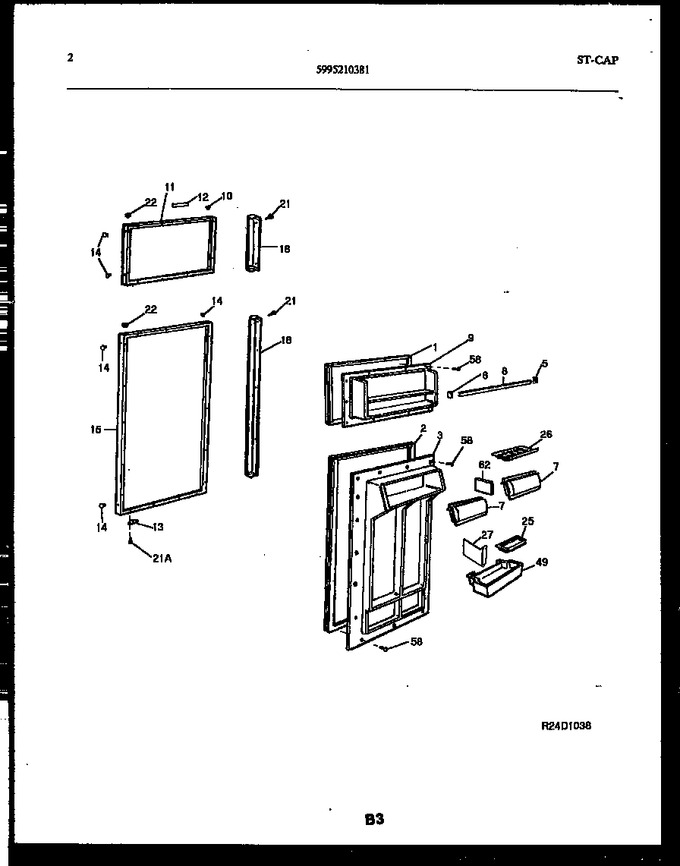

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276825 | Gasket-frzr Door, Magnetic, White |
|
- | |||||
| 2 | 5303275771 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 5303276800 | Panel-inner Door, Refr |
|
- | |||||
| 5 | 5303323480 | Support-door Rack, Rh, (2) (Replaces: 5303017377) |
|
$ 14.18 | |||||
| 6 | 5303323481 | Support-door Rack, Lh, (2) (Replaces: 5303017380) |
|
Immediately | $ 14.18 | ||||
| 7 | 5303275671 | Door-dairy, Rh |
|
- | |||||
| 8 | 5303276733 | Rack-door, (2) |
|
- | |||||
| 9 | 5303276748 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916052 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5303275751 | Nameplate Assy, White |
|
- | |||||
| 12 | 5303275752 | Nameplate Assy, Almond |
|
- | |||||
| 12 | 5303206636 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916952 | Panel, Refr Door, White |
|
- | |||||
| 18 | 5303272664 | Handle-door, White, Frzr |
|
- | |||||
| 18 | 5303272661 | Handle-door, White, Refr |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 15A | 5303275660 | Brace, Cross (non Illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 3A | 5308017047 | Nut, Self Threading, 1/8, (4) |
|
- | |||||
| 7A | 5303275672 | Door-dairy, Lh |
|
- |
