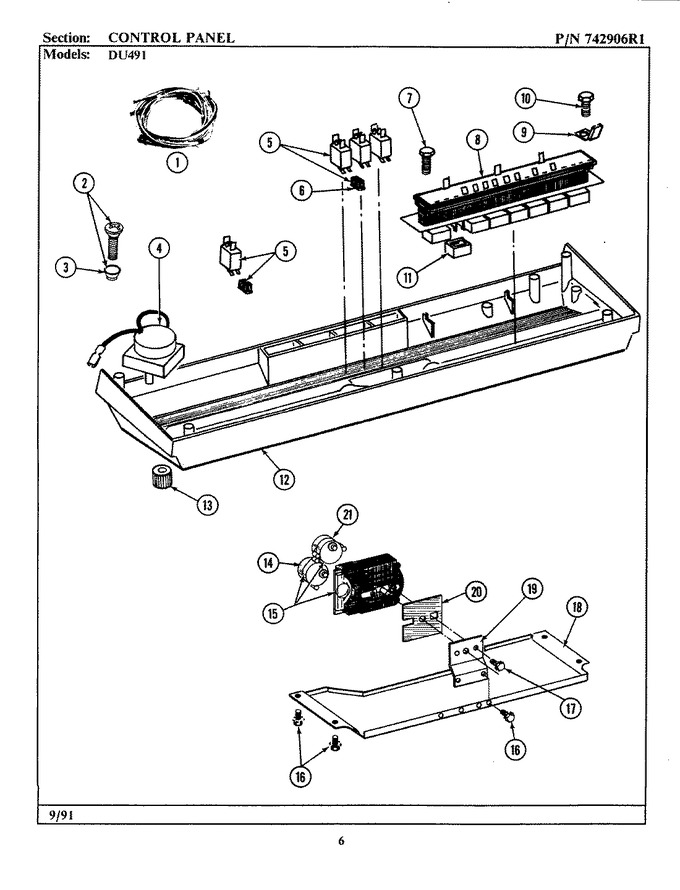

02 - Control Panel
03 - Door
04 - Door Assembly
05 - Pump Assembly
06 - Racks
07 - Tub
08 - Tub Assembly
09 - Tub Support
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 902190 | Harness- Du491 | 1 |
|
- | ||||
| 2 | 901431 | Screw & Washer | 1 |
|
- | ||||
| 3 | 912006 | Washer | 1 |
|
- | ||||
| 4 | 902217 | Timer - Delay | 1 |
|
- | ||||
| 5 | 901636 | Indicator Lamp | 1 |
|
- | ||||
| 6 | 912065 | Lens | 1 |
|
- | ||||
| 7 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | 1 |
|
$ 9.40 | ||||
| 8 | 902218 | Control Switch | 1 |
|
- | ||||
| 9 | 911702 | Ground Receptacle | 1 |
|
- | ||||
| 10 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 1 |
|
$ 9.79 | ||||
| 11 | 912064 | Button For Jenn-air Switches | 1 |
|
- | ||||
| 12 | 902187 | Control Panel | 1 |
|
- | ||||
| 13 | 902222 | Knob | 1 |
|
- | ||||
| 14 | 901829 | Timer Motor | 1 |
|
- | ||||
| 15 | 902220 | Timer, Rapid Advance | 1 |
|
- | ||||
| 16 | WP4312464 | Screw (Replaces: 911050) | 1 |
|
$ 6.26 | ||||
| 17 | 251193 | Screw | 1 |
|
- | ||||
| 18 | 911231 | Base, Frame | 1 |
|
- | ||||
| 19 | 911503 | Bracket Timer | 1 |
|
- | ||||
| 20 | 911504 | Barrier | 1 |
|
- | ||||
| 21 | 901523 | Timer Motor, Rapid Advance | 1 |
|
- |
