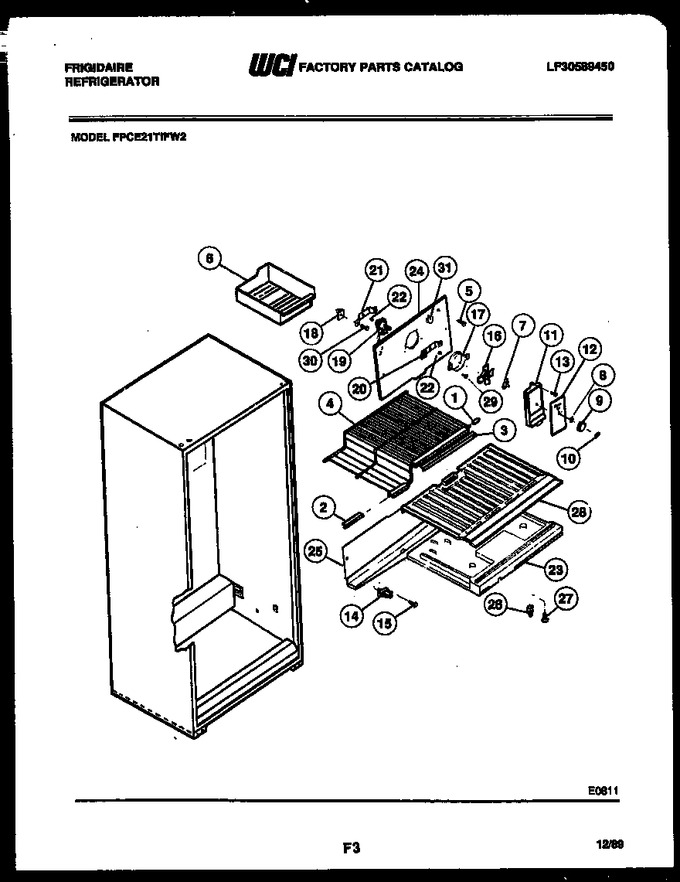

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 2 | 3017427 | Trim |
|
- | |||||
| 3 | 3017428 | Trim |
|
- | |||||
| 4 | 3019033 | Shelf |
|
- | |||||
| 5 | 08012354 | Screw (5) |
|
- | |||||
| 6 | 3018645 | Container-ice |
|
- | |||||
| 7 | 08000066 | Damper |
|
- | |||||
| 8 | 08000067 | Nut-push |
|
- | |||||
| 9 | 08009793 | Knob-damper |
|
- | |||||
| 10 | 08009823 | Label, Damper |
|
- | |||||
| 11 | 08009825 | Cover, Fan |
|
- | |||||
| 12 | 08009937 | Label, Fan Cover |
|
- | |||||
| 13 | 08016566 | Screw |
|
- | |||||
| 14 | 08000056 | Spout |
|
- | |||||
| 15 | 08013647 | Pin-push (2) |
|
- | |||||
| 16 | 5308000010 | Fan (Replaces: 08000010) |
|
Immediately | $ 49.03 | ||||
| 17 | 08000124 | Ring-orifice |
|
- | |||||
| 18 | 08000107 | Bracket-connector |
|
- | |||||
| 19 | 08000036 | Motor-fan |
|
- | |||||
| 20 | 08000043 | Bracket-front |
|
- | |||||
| 21 | 08000042 | Bracket-rear |
|
- | |||||
| 22 | 08000032 | Bushing-motor (2) |
|
- | |||||
| 23 | 3019039 | Divider-styrofoam |
|
- | |||||
| 24 | 08013665 | Cover-coil |
|
- | |||||
| 25 | 08009772 | Trough-drain |
|
- | |||||
| 26 | 09918806 | Switch-light |
|
- | |||||
| 27 | 08000070 | Screw |
|
- | |||||
| 28 | 08013664 | Bottom-freezer |
|
- | |||||
| 29 | 3001001 | Screw (2) |
|
- | |||||
| 30 | 3001001 | Screw-connector |
|
- | |||||
| 31 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 24A | 08000126 | Nut-``u`` Type (non-illustrated) |
|
- |
