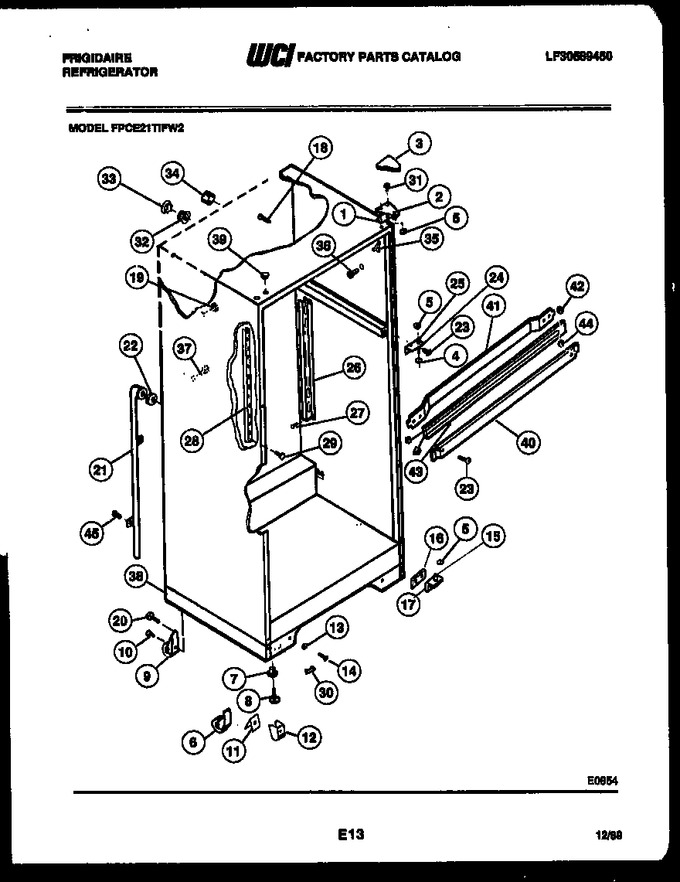

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012829 | Shim-top Hinge |
|
- | |||||
| 2 | 08012843 | Hinge-top |
|
- | |||||
| 3 | 08012932 | Hinge Cover-coffee |
|
- | |||||
| 4 | 08000100 | Washer-nylon |
|
- | |||||
| 5 | 08000007 | Washer-nylon |
|
- | |||||
| 6 | 08009760 | Roller-front (2) |
|
- | |||||
| 7 | 08003584 | Nut-anchor (2) |
|
- | |||||
| 8 | 08003583 | Screw-leveling |
|
- | |||||
| 9 | 08009773 | Roller Assy-rear (2) |
|
- | |||||
| 10 | 08009762 | Bolt-roller Mtg (2) |
|
- | |||||
| 11 | 08009790 | Spring-roller Adj (2) |
|
- | |||||
| 12 | 08013678 | Support-base (2) |
|
- | |||||
| 13 | 08011326 | Washer (2) |
|
- | |||||
| 14 | 08009761 | Bolt-roller Adj (2) |
|
- | |||||
| 15 | 08003578 | Pin-bottom Hinge |
|
- | |||||
| 16 | 08000755 | Shim-bottom Hinge |
|
- | |||||
| 17 | 3202834 | Bracket-bottom Hinge |
|
- | |||||
| 18 | 08000097 | Support-coil Cover (2) |
|
- | |||||
| 19 | 08010253 | Screw-im Mtg (3) |
|
- | |||||
| 20 | 08016629 | Screw-mounting (2) |
|
- | |||||
| 21 | 08010012 | Drain Tube |
|
- | |||||
| 22 | 08009755 | Ring Seal-tube |
|
- | |||||
| 23 | 08012258 | Screw |
|
- | |||||
| 24 | 08000757 | Bracket-center Hinge |
|
- | |||||
| 25 | 08000184 | Pin-center Hinge |
|
- | |||||
| 26 | 08000302 | Channel-rs And Ls |
|
- | |||||
| 27 | 08002728 | Screw |
|
- | |||||
| 28 | 3015409 | Channel-center |
|
- | |||||
| 29 | 08016568 | Screw-chan Mtg (3) |
|
- | |||||
| 30 | 08003585 | Plug-hinge Hole |
|
- | |||||
| 31 | 08000123 | Screw |
|
- | |||||
| 32 | 08006970 | Ferrule-inner |
|
- | |||||
| 33 | 08006971 | Ferrule-outer |
|
- | |||||
| 34 | 08000004 | Tube-rubber (2) |
|
- | |||||
| 35 | 3202339 | Corner Trim-coffee |
|
- | |||||
| 36 | 08002747 | Grommet |
|
- | |||||
| 37 | 08009759 | Grommet-shelf (2) |
|
- | |||||
| 38 | 08010092 | Base-cabinet |
|
- | |||||
| 39 | 08007128 | Plug-coffee |
|
- | |||||
| 40 | 3200369 | Mullion-coffee |
|
- | |||||
| 41 | 08010008 | Strap-mullion Mtg |
|
- | |||||
| 42 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 43 | 3018916 | Heater-mullion |
|
- | |||||
| 44 | 08003607 | Washer-steel (2) |
|
- | |||||
| 45 | 08016629 | Screw-mtg (2) |
|
- | |||||
| *28542 | 08012296 | Tapping Plate (4) |
|
- | |||||
| 17A | 08010252 | Screw-hinge Mtg (2) (non-illustrated) |
|
- |
