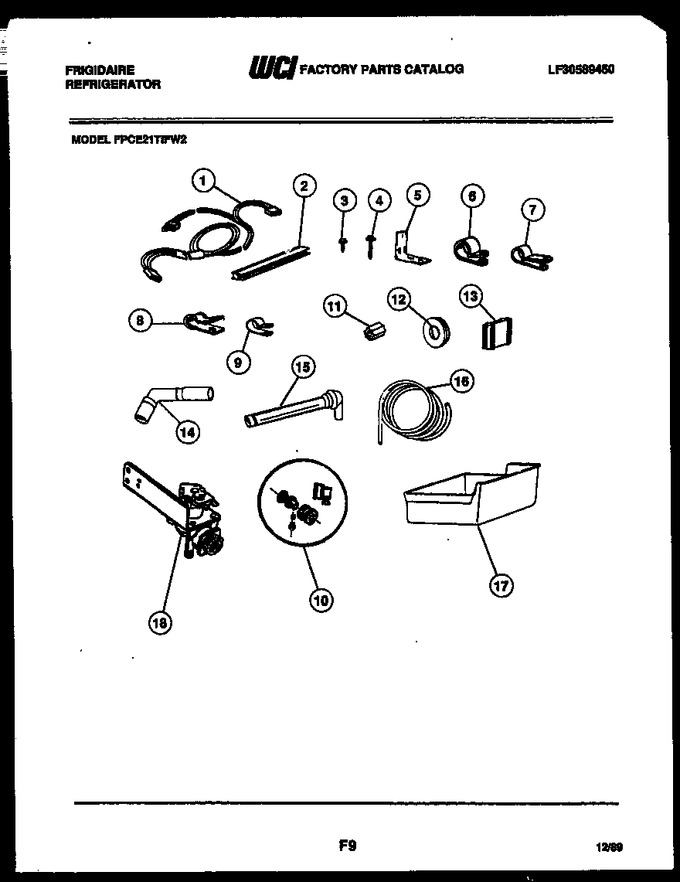

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


07 - Ice Maker Parts


08 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206358		Wiring Harness		Appelez-nous	-
2	3206361		Strip-sealing		Appelez-nous	-
3	3001194		Screw-clamp & Inlet Tube (8)		Appelez-nous	-
4	G166567		Screw-ice Maker Mtg (2)		Appelez-nous	-
5	G27669		Clamp-harness Mtg		Appelez-nous	-
6	08000133		Clamp		Appelez-nous	-
7	G168978		Clamp-harness & Inlet Tube Mtg (2)		Appelez-nous	-
8	3001549		Clamp-steel Tube Clamp		Appelez-nous	-
9	3001193		Clamp-inlet Tube To Rear Panel		Appelez-nous	-
10	3206360		Water Supply Adapter				$ 94.66
11	08000200		Nut-nylon		Appelez-nous	-
12	171080		Plug-rear Pnl & Coil Cover (2)		Appelez-nous	-
13	3001557		Adapter Plug-rear Pnl		Appelez-nous	-
14	3001564		Tube-water Fill (plastic)		Appelez-nous	-
15	3206359		Tube-water Inlet		Appelez-nous	-
16	08010366		Tube-valve To Ice Maker		Appelez-nous	-
17	3018645		Container-ice (see Page 13, Ref. No. 38)		Appelez-nous	-
18	3206356		Valve-solenoid		Appelez-nous	-
