Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308017483 Gasket, Freezer Appelez-nous -
2 08002748 Screw Appelez-nous -
3 3019030 Panel, Inner Freezer Appelez-nous -
4 3017419 Rack, Freezer (2) Appelez-nous -
5 5303323480 Support, Rh (2)   (Replaces: 5303017378) Special Order $ 14.18

6 5303200412 Dish, Microwave Single (2) Appelez-nous -
7 240494001 Button Plug-white   (Replaces: 5308000090) In-Stock Immediately $ 18.20

8 5308000134 Button Plug-white Special Order $ 5.62

9 5308017493 Handle-complete Frzr (w/ Trim & End Caps) Appelez-nous -
10 5308000255 Door Stop-freezer Special Order $ 42.20

11 5308010239 Cap (2) Appelez-nous -
12 5308010238 Cap (2) Appelez-nous -
13 3201581 Nameplate Appelez-nous -
14 5308012007 Bearing (8) Appelez-nous -
15 5308013666 Panel-freezer-white Appelez-nous -
16 08013645 Screw (4) Appelez-nous -
17 5303018635 Tray, Egg Appelez-nous -
18 5308017487 Gasket, Refrigerator Appelez-nous -
19 3018868 Door-dairy-lh (large) Appelez-nous -
20 3017421 Rack, Refrigerator Appelez-nous -
21 5303325990 Support, Rh (2)   (Replaces: 5303203262) In-Stock Immediately $ 17.01

22 3017420 Rack, Door Appelez-nous -
23 5303200596 Panel, Inner, Refr Appelez-nous -
24 5308009928 Panel, Refr (white) Appelez-nous -
25 5308017497 Handle-complete Refr (w/ Trim & End Caps) Appelez-nous -
26 5308011745 Screw Special Order $ 10.38

27 3018974 Door-dairy Rh (small) Appelez-nous -
28 5303018743 Dish, Butter Appelez-nous -
29 5303200413 Dish, Microwave Double Appelez-nous -
30 5303200414 Lid, Microwave Dish (3) Appelez-nous -
31 08009857 Trim-door Top Appelez-nous -
32 5308009601 Button Plug Appelez-nous -
*40900 5303007739 Insulation, Door Appelez-nous -
10A 5303212491 Door Stop-refrigerator (non-illustrated) Appelez-nous -
20A 3205117 Snugger-finger (non-illustrated) Appelez-nous -
21A 5303203263 Support-lh (2) (non-illustrated) Appelez-nous -
5A 5303323481 Support, Lh (2) (non-illustrated)   (Replaces: 5303017381) In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

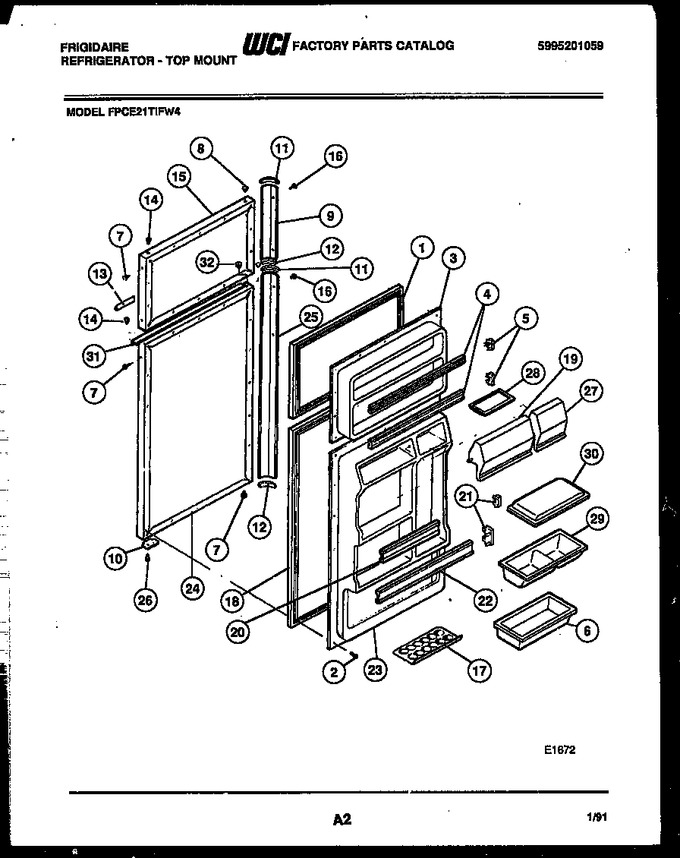

Diagram for FPCE21TIFW4
