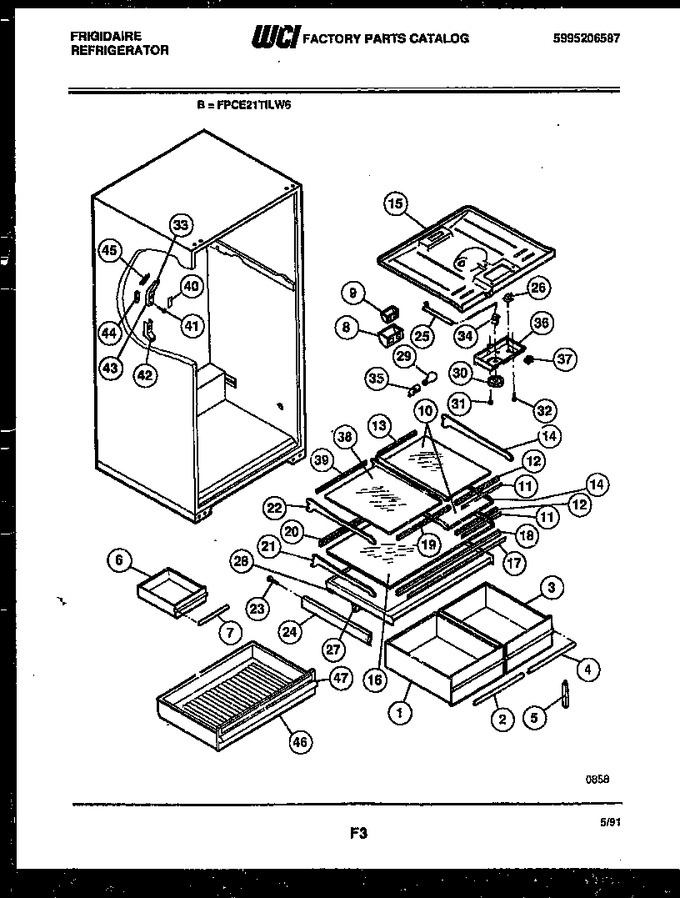

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303206661		Pan-storage Lh		Appelez-nous	-
2	5303206662		Trim-pan Lh		Appelez-nous	-
3	5303206668		Pan-storage Rh		Appelez-nous	-
4	5303206669		Trim-pan Rh		Appelez-nous	-
5	5303205987		Support-cover				$ 48.41
6	5303206675		Pan-meat		Appelez-nous	-
7	5303206674		Trim-meat Pan		Appelez-nous	-
8	5303001449		Seal-air Deflector				$ 2.12
9	5308014667		Air Deflector		Appelez-nous	-
10	5303273086		Glass-shelf (2)		Appelez-nous	-
11	5303206650		Trim-shelf (2)		Appelez-nous	-
12	5303209263		Retainer (2)		Appelez-nous	-
13	5303211830		Retainer-rear (2)		Appelez-nous	-
14	5303209266		Frame, 1/2 Shelf (2)		Appelez-nous	-
15	3019038		Top, Refrigerator		Appelez-nous	-
16	5303273087		Glass-shelf		Appelez-nous	-
17	5303206647		Trim		Appelez-nous	-
18	5303211965		Gasket-retainer		Appelez-nous	-
19	5303209263		Retainer-meat Shelf		Appelez-nous	-
20	5303211962		Retainer-rear		Appelez-nous	-
21	5303211963		Frame, Full Shelf		Appelez-nous	-
22	5303209270		Frame, Meat Shelf		Appelez-nous	-
23	08014528		Screw (6)				$ 4.31
24	5303209272		Hanger Lh (2)				$ 90.83
25	3018871		Housing-cap Tube		Appelez-nous	-
26	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
27	5303200329		Gasket, Cover		Appelez-nous	-
28	5303206538		Cover-crisper		Appelez-nous	-
29	5303001179		Bulb, Light		Appelez-nous	-
30	5303206670		Control-humidity		Appelez-nous	-
31	5303001260		Screw				$ 6.73
32	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
33	08009767		Duct, Upper		Appelez-nous	-
34	5303018894		Control, Cold		Appelez-nous	-
35	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
36	5303206679		Box-control		Appelez-nous	-
37	3206389		Switch-rocker		Appelez-nous	-
38	5303273102		Glass-meat Shelf		Appelez-nous	-
39	5303211828		Retainer-rear		Appelez-nous	-
40	3200588		Label, Duct		Appelez-nous	-
41	5308016568		Screw-8a X 1-1/2		Appelez-nous	-
42	5303001443		Duct, Lower		Appelez-nous	-
43	5303001445		Damper, Control		Appelez-nous	-
44	5308009764		Insulation, Air Duct		Appelez-nous	-
45	5308009765		Insulation-meat Keeper Duct		Appelez-nous	-
46	5303206654		Tray-deli		Appelez-nous	-
47	5303206653		Trim-deli Tray		Appelez-nous	-
*93168	5303209272		Hanger Lh				$ 90.83
*93169	5303209273		Hanger Rh				$ 60.06
*93169	5303206652		Divider-deli Tray		Appelez-nous	-
19A	5303206658		Trim-meat Shelf (non-illustrated)		Appelez-nous	-
20A	5303211966		Gasket-rear (non-illustrated)		Appelez-nous	-
24A	5303209273		Hanger Rh (2) (non-illustrated)				$ 60.06
28A	3200579		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
28B	5303273106		Glass Shelf (non-illustrated)		Appelez-nous	-
28C	5303206671		Glass-shelf (non-illustrated)		Appelez-nous	-
8A	5303001448		Cover-air Deflector (non-illustrated)		Appelez-nous	-
9A	5303200590		Extension-insulation Deflector (non-illustrated)		Appelez-nous	-
