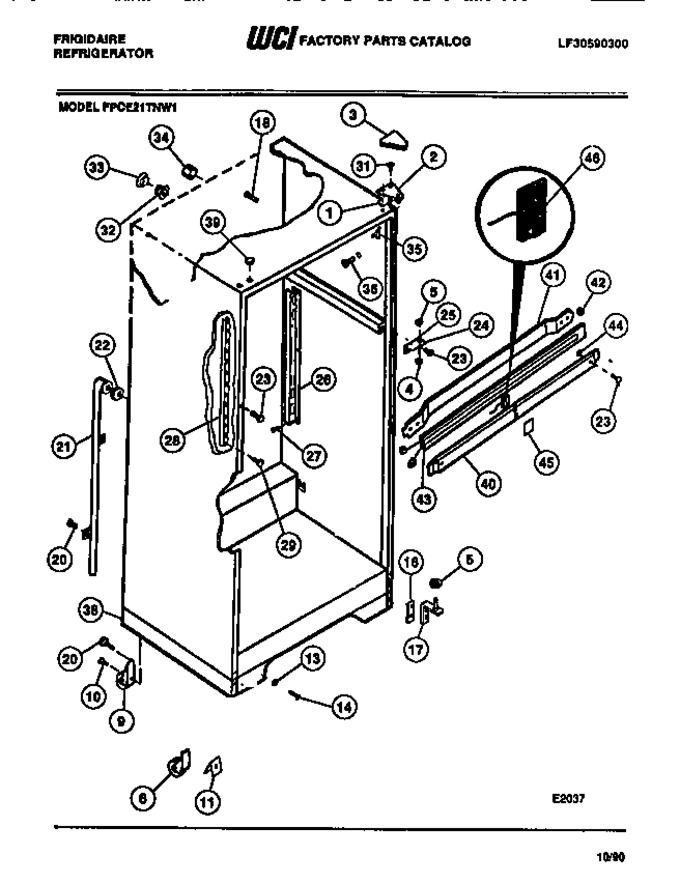

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Food & Freezer Doors
03 - Cabinet
04 - Food Compartment, Shelves, Moulding
05 - Freezer Compartment, Shelf, Blower
06 - Compressor, Condenser, Evaporator
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 4 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 5 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 6 | 5303212490 | Roller, Front (2) |
|
- | |||||
| 9 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 10 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 11 | 5308009790 | Spring, Roller Adj (2) |
|
$ 4.30 | |||||
| 13 | 5308011326 | Washer (2) |
|
$ 9.87 | |||||
| 14 | 5303212598 | Screw, Roller Adj (2) |
|
- | |||||
| 16 | 5303212488 | Shim, Bottom Hinge |
|
$ 5.25 | |||||
| 17 | 5303212489 | Bracket, Bottom Hinge |
|
- | |||||
| 18 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5303210377 | Drain Tube, W/ Seal Ring |
|
$ 109.31 | |||||
| 22 | 5303207353 | Ring Seal, Tube |
|
$ 6.81 | |||||
| 23 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 24 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 25 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 26 | 5308000302 | Channel, Rh And Lh |
|
- | |||||
| 27 | 5308010253 | Screw, Mounting (6) |
|
- | |||||
| 28 | 5303015409 | Channel Center |
|
- | |||||
| 29 | 08016568 | Screw, Mounting (3) |
|
- | |||||
| 31 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 32 | 5303001286 | Ferrule-inner |
|
- | |||||
| 33 | 5303001287 | Ferrule-outer |
|
- | |||||
| 34 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 36 | 5304509705 | Grommet, Shelf Rh (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 38 | 5303212487 | Base-cabinet |
|
- | |||||
| 41 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 42 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 43 | 5303210351 | Heater-mullion |
|
- | |||||
| 44 | 5303206754 | Washer, Steel (4) |
|
- | |||||
| 46 | 5303211924 | Sensor, Door Ajar |
|
- | |||||
| 17A | 5303001320 | Screw, Hinge Mtg (6) (ni) |
|
- | |||||
| 35A | 5303202338 | Corner Trim, Wheat |
|
- | |||||
| 36A | 5304500407 | Grommet, Shelf Lh (2) (ni) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 39A | 5303001678 | Plug, Wheat |
|
- | |||||
| 3A | 5303001665 | Hinge Cover, Wheat |
|
- | |||||
| 40A | 5303211921 | Mullion, Wheat |
|
- | |||||
| 45A | 5303211918 | Label, Door Ajar Sensor, Wheat |
|
- | |||||
| 46A | 5303211925 | Retainer, Sensor (ni) |
|
- | |||||
| 46B | 5308016571 | Plug, Liner (2) (ni) |
|
$ 4.79 | |||||
| 46C | 5308012296 | Tapping Plate, Upper (2) (ni) |
|
$ 47.44 | |||||
| 46D | 5303212596 | Tapping Plate, Lower (gusset) Lh (ni) |
|
- | |||||
| 46E | 5303212597 | Tapping Plate, Lower (gusset) Rh (ni) |
|
- |
