02 - Food & Freezer Doors
03 - Cabinet
04 - Food Compartment, Shelves, Moulding
05 - Freezer Compartment, Shelf, Blower
06 - Compressor, Condenser, Evaporator
SELECT A DIAGRAM
New Model Search:

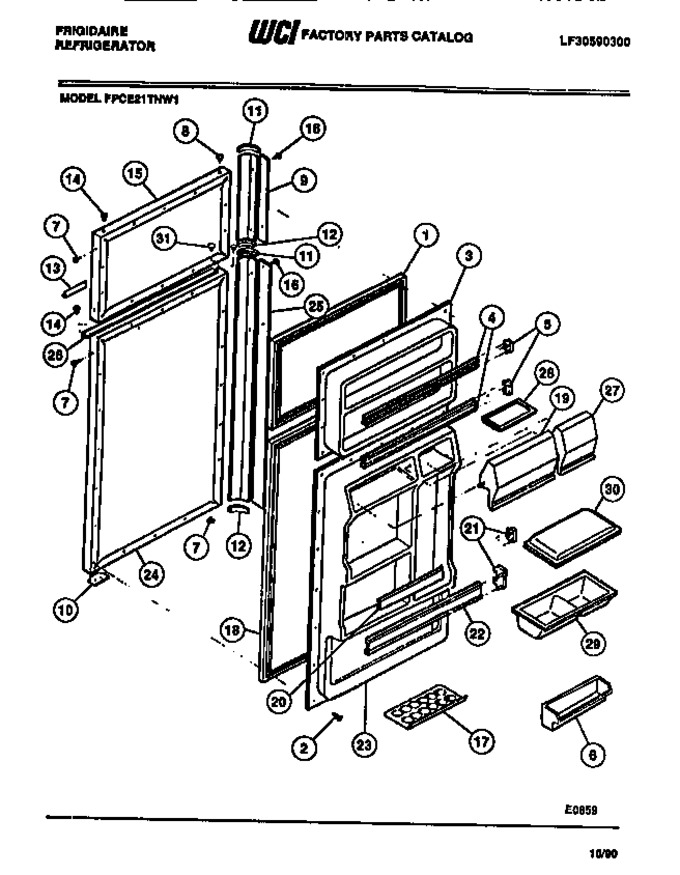

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017483 | Gasket, Freezer |
|
- | |||||
| 2 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 3 | 3019030 | Panel, Inner Freezer |
|
- | |||||
| 4 | 3017419 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323480 | Support, Rh (2) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 5303200412 | Dish, Microwave Single (2) |
|
- | |||||
| 9 | 5308017493 | Handle, Complete, Frzr (includes 11 & 12) |
|
- | |||||
| 10 | 5308000255 | Door Stop, Freezer (1) |
|
$ 42.20 | |||||
| 11 | 5308010239 | Cap (2) |
|
- | |||||
| 12 | 5308010238 | Cap (2) |
|
- | |||||
| 13 | 3201581 | Nameplate |
|
- | |||||
| 14 | 5308012007 | Bearing (8) |
|
- | |||||
| 16 | 5308013645 | Screw (6) |
|
- | |||||
| 17 | 5303018635 | Tray, Egg |
|
- | |||||
| 18 | 5308017487 | Gasket, Refrigerator |
|
- | |||||
| 19 | 3018868 | Door, Large, Lh |
|
- | |||||
| 20 | 3017421 | Rack, Refrigerator |
|
- | |||||
| 21 | 5303325990 | Support, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22 | 3017420 | Rack, Door |
|
- | |||||
| 23 | 5303200596 | Panel, Inner, Refr |
|
- | |||||
| 25 | 5308017497 | Handle, Complete, Refr (includes 11 & 12) |
|
- | |||||
| 26 | 5308009857 | Trim, Door Top |
|
- | |||||
| 27 | 3018974 | Door, Small Rh |
|
- | |||||
| 28 | 5303018743 | Dish, Butter |
|
- | |||||
| 29 | 5303200413 | Dish, Microwave Double |
|
- | |||||
| 30 | 5303200414 | Lid, Microwave Dish (3) |
|
- | |||||
| 31 | 5308009601 | Button Plug |
|
- | |||||
| 10A | 5303212491 | Door Stop, Refrig (1) (ni) |
|
- | |||||
| 10B | 5308011745 | Screw |
|
$ 10.38 | |||||
| 15B | 5318468711 | Panel, Freezer, Almd |
|
- | |||||
| 21A | 5303203263 | Support, Lh (2) (ni) |
|
- | |||||
| 22A | 3205117 | Snugger, Finger (ni) |
|
- | |||||
| 24B | 5308009930 | Panel, Refr, Almond |
|
- | |||||
| 31A | 5303007739 | Insulation, Bulk (ni) |
|
- | |||||
| 5A | 5303323481 | Support, Lh (2) (ni) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 7B | 5308000181 | Button Plug-almd |
|
- | |||||
| 8B | 5303001308 | Button, Plug, Almd |
|
- |
