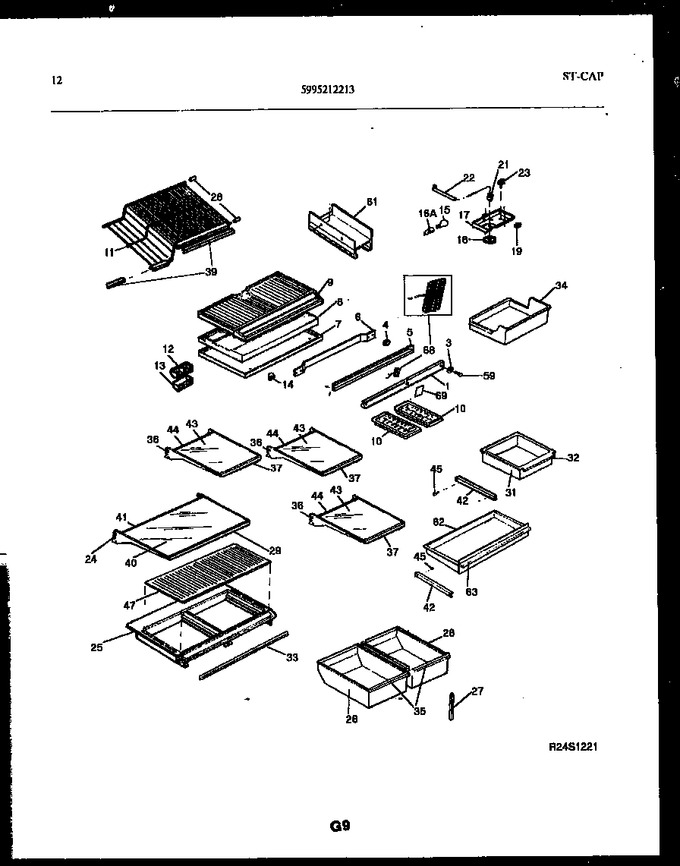

FPCE21TPH1 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
24	5303211963	Frame-full Shelf, Cantilever	Appelez-nous	-
25	5303019035	Cover, Crisper Pan	Appelez-nous	-
26	3018873	Pan, Crisper, Lh	Appelez-nous	-
26	3200571	Pan-crisper, Rh	Appelez-nous	-
27	5303206507	Support, Crisper Cvr, Adjustable	Appelez-nous	-
28	3201150	Cap-protector			$ 4.57
29	5303272550	Trim-full Shelf, Snap-on	Appelez-nous	-
31	3200572	Pan, Meat	Appelez-nous	-
32	5303272530	Trim, Meat Pan	Appelez-nous	-
33	5303200329	Gasket - Crisper Cover	Appelez-nous	-
34	5303212895	Container, Ice	Appelez-nous	-
35	5303272523	Trim, Crisper Pan, Lh	Appelez-nous	-
35	5303272529	Trim, Crisper Pan, Rh	Appelez-nous	-
36	5303209270	Frame-meat Kpr Shelf, Cantilever	Appelez-nous	-
36	5303209266	Frame-half Shelf	Appelez-nous	-
37	5303272797	Trim-half, Snap-on, (2)	Appelez-nous	-
37	5303272543	Trim-meat Kpr Shelf, (5)	Appelez-nous	-
39	5303272521	Trim-frzr Shelf, Small	Appelez-nous	-
39	5303272796	Trim-frzr Shelf, Large	Appelez-nous	-
40	5303211964	Shelf-glass, Full Shelf	Appelez-nous	-
40	5303210016	Hanger, Meat Pan, Lh			$ 134.09
41	5303211962	Trim-full Shelf, Rear	Appelez-nous	-
43	5303211967	Shelf-glass, Meat Kpr Shelf	Appelez-nous	-
43	5303211959	Shelf-glass, Half Shelf, (2)	Appelez-nous	-
24A	5300170910	Clip-cantilever Shlf (non-illustrated)			$ 2.60
25A	3200579	Trim-crisper Cover (non-illustrated)	Appelez-nous	-
26A	5303200580	Control - Humidity (non-illustrated)	Appelez-nous	-
40A	5303211965	Retainer/gasket, Full Shelf-frnt (non-illustrated)	Appelez-nous	-
40B	5303211966	Gasket, Full Shelf-rear (non-illustrated)	Appelez-nous	-
41A	5303211351	Lock-rear Trim (non-illustrated)	Appelez-nous	-
42A	5303210017	Hanger, Meat Pan, Rh (non Illustrated)			$ 107.89
43A	5303209263	Retainer-glass (2) (non-illustrated)	Appelez-nous	-
