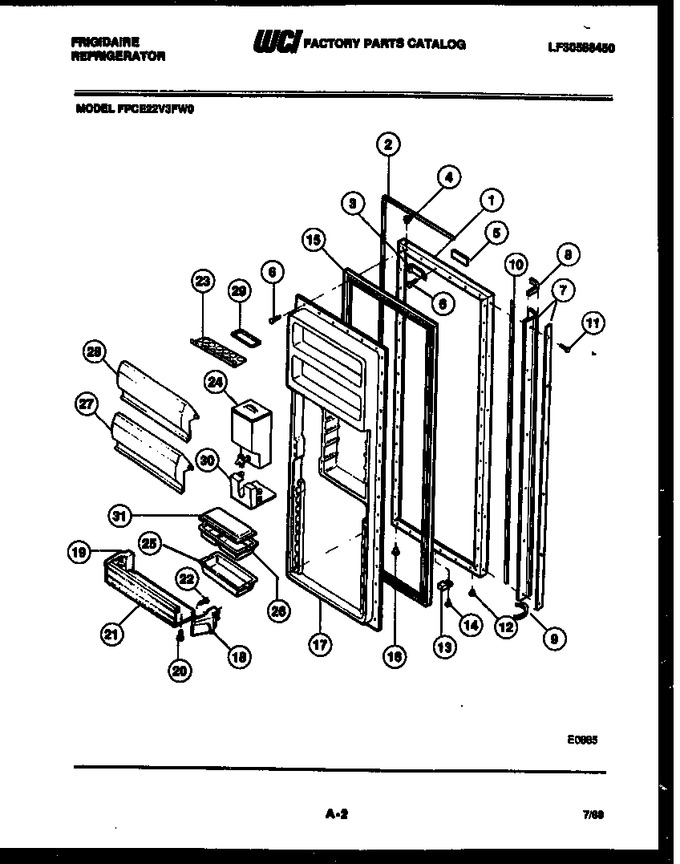

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8009951		Panel-refr Avocado		Appelez-nous	-
2	3200671		Trim-door		Appelez-nous	-
3	3200272		Closer-door		Appelez-nous	-
4	8012008		Bearing-hinge		Appelez-nous	-
5	3018632		Nameplate Assembly		Appelez-nous	-
6	8002748		Screw (37)		Appelez-nous	-
7	8017423		Handle Assy-door		Appelez-nous	-
8	8010239		End Cap-top		Appelez-nous	-
9	8010238		End Cap-bottom		Appelez-nous	-
10	8010229		Trim-handle		Appelez-nous	-
11	8013645		Screw (6)		Appelez-nous	-
12	8002751		Plug-button		Appelez-nous	-
13	8000790		Bumper-light Switch		Appelez-nous	-
14	8000839		Screw		Appelez-nous	-
15	3200273		Gasket-refrigerator		Appelez-nous	-
16	8012007		Bearing-hinge		Appelez-nous	-
17	3200672		Panel-inner		Appelez-nous	-
18	3018742		Support-shelf-rh (3)		Appelez-nous	-
19	3018741		Support-shelf-lh (3)		Appelez-nous	-
20	8002773		Rivet (6)		Appelez-nous	-
21	3200674		Shelf-door (3)		Appelez-nous	-
22	8000812		Screw (6)		Appelez-nous	-
23	3018932		Tray-egg		Appelez-nous	-
24	3200416		Beverage Center		Appelez-nous	-
25	3200412		Dish-microwave Single (2)		Appelez-nous	-
26	3200413		Dish-microwave Double		Appelez-nous	-
27	3200415		Door-compartment		Appelez-nous	-
28	3200442		Door-compartment		Appelez-nous	-
29	3018743		Dish-butter		Appelez-nous	-
30	3200676		Shelf-beverage Center		Appelez-nous	-
31	3200414		Lid-microwave Dish (3)		Appelez-nous	-
23A	3200675		Snugger-finger		Appelez-nous	-
