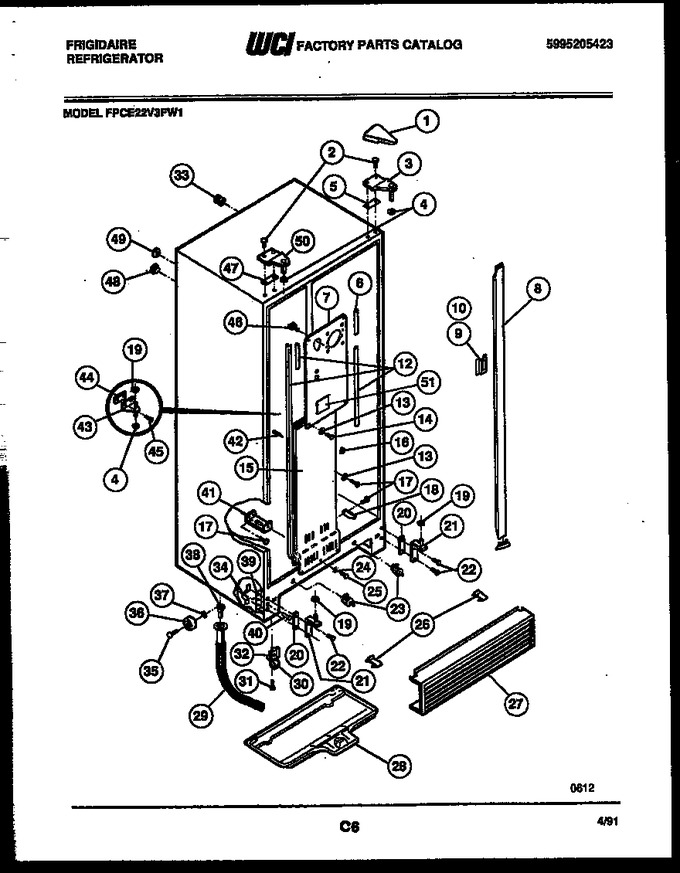

SELECT A DIAGRAM

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001664		Cover - Top Hinge - Avocado (2)		Appelez-nous	-
2	241710601		Screw   (Replaces: 5303001479)				$ 13.46
3	5308012934		Hinge-upper-rh		Appelez-nous	-
4	5303001038		Washer-nylon (3)				$ 13.34
5	5303001037		Shim - Upper Hinge				$ 12.39
6	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
7	5303006543		Cover-upper Coil		Appelez-nous	-
8	3916445		Mullion, Avocado		Appelez-nous	-
9	5300169100		Clip-mullion (3)		Appelez-nous	-
10	5303001281		Clip-mullion (3)		Appelez-nous	-
12	5303001233		Gasket-kit Cover		Appelez-nous	-
13	5303001216		Washer-nylon (8)		Appelez-nous	-
14	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
15	08000824		Cover-lower Coil		Appelez-nous	-
16	5303001231		Clip-grounding		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
18	5316491203		Damper, Meat Keeper		Appelez-nous	-
19	5308000186		Washer-nylon (3)			Immediately	$ 6.02
20	5303001272		Shim-lower Hinge (2)		Appelez-nous	-
21	5303001271		Hinge-lower (2)				$ 102.38
22	5303001041		Screw (4)		Appelez-nous	-
23	5303272130		Switch (2)		Appelez-nous	-
24	5308009617		Washer-ext Lock (2)		Appelez-nous	-
25	08009585		Screw		Appelez-nous	-
26	5308000847		Clip, Grille (2)				$ 5.39
27	3200661		Grille-lower Front				$ 22.35
28	5303001026		Pan-defrost		Appelez-nous	-
29	5303209723		Tube-drain		Appelez-nous	-
30	5308000118		Assy Roller Adj (2)		Appelez-nous	-
31	5308017044		Screw (2)				$ 6.34
32	5308009568		Screw (2)		Appelez-nous	-
33	5303001198		Tube-rubber (4)		Appelez-nous	-
34	5300077210		Nut-stud Speed (2)		Appelez-nous	-
35	5308000266		Pin (2)		Appelez-nous	-
36	5303001030		Roller (2)				$ 17.80
37	5303001028		Nut-push (2)		Appelez-nous	-
38	5308000853		Conductor-heat		Appelez-nous	-
39	5303001273		Nut-special Twin (4)		Appelez-nous	-
40	5308000013		Pin-shoulder (2)		Appelez-nous	-
41	5308000738		Bracket-cover Mtg		Appelez-nous	-
42	5303001250		Support-coil Cover (5)		Appelez-nous	-
43	5300169531		Bracket-center Hinge		Appelez-nous	-
44	08002788		Shim-center Hinge		Appelez-nous	-
45	5308012258		Screw				$ 2.25
46	5308000097		Support, Coil Cover (2)		Appelez-nous	-
47	5303001037		Shim - Upper Hinge				$ 12.39
48	5303001286		Ferrule-inner (2)		Appelez-nous	-
49	5303001287		Ferrule-outer (2)		Appelez-nous	-
50	5303001062		Hinge-upper Lh				$ 117.02
51	08012270		Plug-decorative		Appelez-nous	-
*45736	5308012296		Tapping-plate (2)				$ 47.44
16A	5303001230		Screw (non-illustrated)		Appelez-nous	-
7A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
7B	5303208309		Plug, Short Test Hole				$ 45.50
