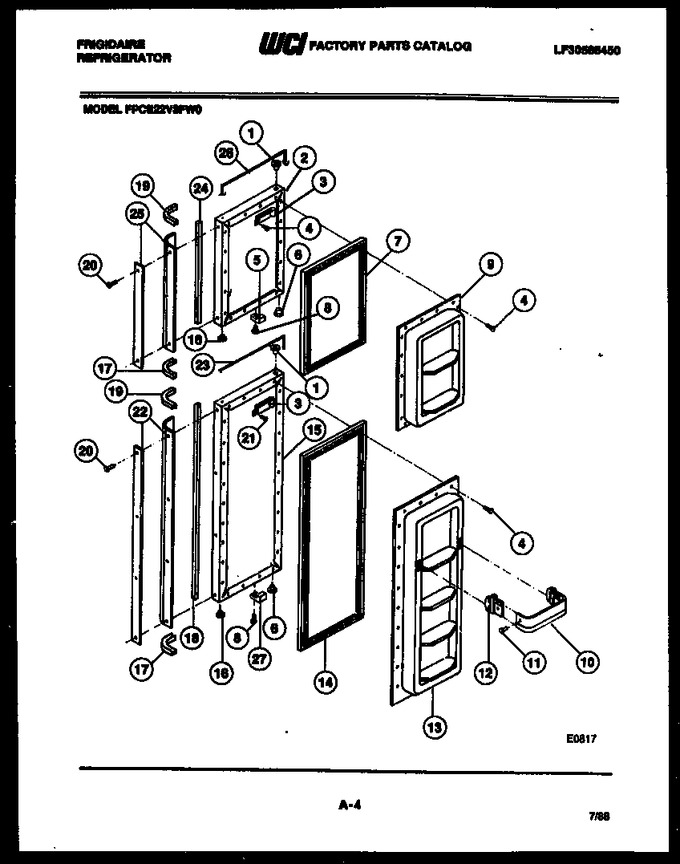

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8012008		Bearing-hinge Upper (2)		Appelez-nous	-
2	8009965		Panel-exterior Coffee		Appelez-nous	-
3	3200272		Closer (2)		Appelez-nous	-
4	8002748		Screw (41)		Appelez-nous	-
5	8002802		Bumper-light Switch		Appelez-nous	-
6	8012007		Bearing-hinge Lower (2)		Appelez-nous	-
7	3200274		Gasket-mag Upper		Appelez-nous	-
8	8000839		Screw (2)		Appelez-nous	-
9	3018625		Panel-interior Upper		Appelez-nous	-
10	3018626		Rack-door (6)		Appelez-nous	-
11	8002750		Rivet-oval Hd (12)		Appelez-nous	-
12	3200542		Support-door Rk Lh		Appelez-nous	-
13	3200677		Panel-interior Lower		Appelez-nous	-
14	3200275		Gasket-mag Lower		Appelez-nous	-
15	8009960		Panel-exterior Coffee		Appelez-nous	-
16	8002751		Button-plug (2)		Appelez-nous	-
17	8010239		End Cap (2)		Appelez-nous	-
18	8010231		Trim-handle Freezer		Appelez-nous	-
19	8010238		End Cap (2)		Appelez-nous	-
20	8013645		Screw (6)		Appelez-nous	-
21	8002748		Screw		Appelez-nous	-
22	8017428		Handle-door Lower		Appelez-nous	-
23	3018629		Trim-door		Appelez-nous	-
24	8010230		Trim-handle Freezer		Appelez-nous	-
25	8017432		Handle-door Upper		Appelez-nous	-
26	3018630		Trim-door		Appelez-nous	-
27	8000790		Bumper-light Switch		Appelez-nous	-
12A	3200543		Support-door Rk Rh (12) (non-illustrated)		Appelez-nous	-
