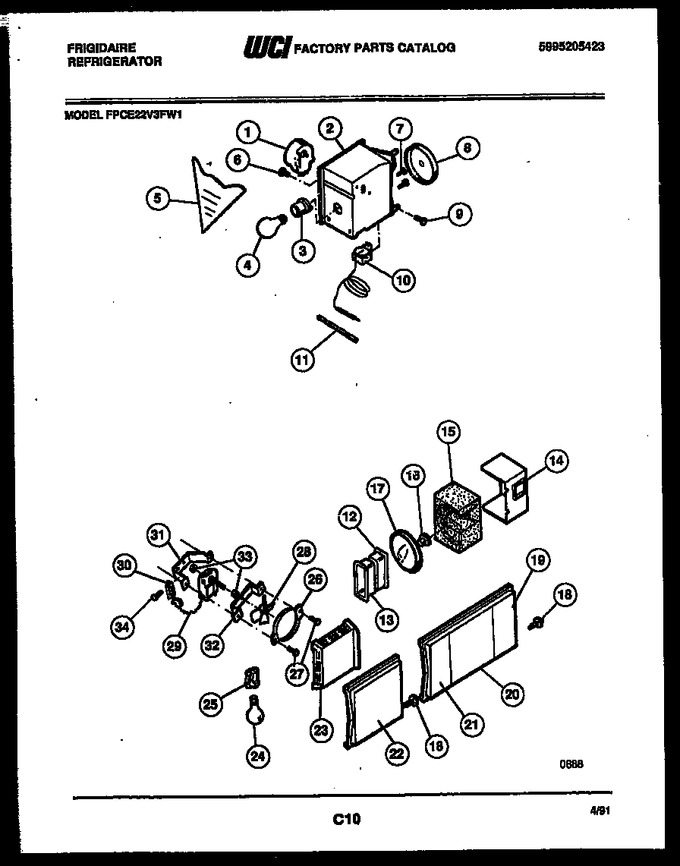

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
2	5308017561		Box-control		Appelez-nous	-
3	5308000129		Socket-light				$ 62.16
4	5303001179		Bulb, Light		Appelez-nous	-
5	3001269		Insul Control Box		Appelez-nous	-
6	5308010253		Screw (2)		Appelez-nous	-
7	5303001260		Screw				$ 6.73
8	5308010380		Knob-cold Control		Appelez-nous	-
9	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
10	5308000068		Control-cold				$ 166.58
11	5303916855		Tube-plastic				$ 60.96
12	5303001277		Ferrule, Outer		Appelez-nous	-
13	5303001276		Ferrule, Inner		Appelez-nous	-
14	5303211383		Box-damper Control		Appelez-nous	-
15	5308000771		Deflector-air		Appelez-nous	-
16	5300185373		Clip-rivet		Appelez-nous	-
17	5308010379		Knob-damper Control		Appelez-nous	-
18	5303001213		Support-spec Barrel (2)		Appelez-nous	-
19	5308009987		Label-refrigerator Rh		Appelez-nous	-
20	5303211408		Light Shield-refr		Appelez-nous	-
21	5308009988		Label-refrigerator Lh		Appelez-nous	-
22	08009615		Light Shield-freezer		Appelez-nous	-
23	5316465401		Cover, Fan		Appelez-nous	-
24	5303001179		Bulb, Light		Appelez-nous	-
25	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
26	5308000124		Ring-fan Orifice				$ 53.58
27	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
28	5308000010		Fan			Immediately	$ 49.03
29	5300158289		Motor-blower			Immediately	$ 149.94
30	5308000107		Bracket-connector				$ 33.23
31	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
32	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
33	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
34	5303210353		Screw-bracket		Appelez-nous	-
