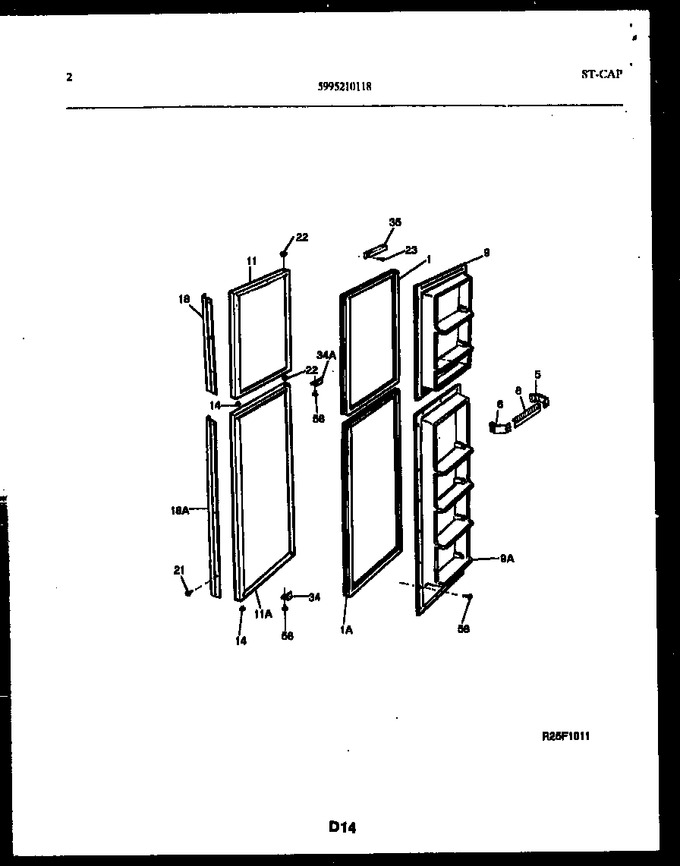

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Refrigerator Door Parts


05 - Cabinet Parts


06 - Cabinet Parts


07 - Shelves And Supports


08 - Shelves And Supports


09 - Refrigerator Control Assembly, Damp


10 - System And Automatic Defrost Parts


11 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200274		Gasket-frzr Door, Magnetic, Upper		Appelez-nous	-
5	5303206719		Support-door Rack, Rh, (6)		Appelez-nous	-
6	5303206605		Support-door Rack, Lh, (6)		Appelez-nous	-
8	3206367		Rack-door (6)		Appelez-nous	-
9	3018625		Panel-inner Door, Frzr, Upper		Appelez-nous	-
11	5303916995		Panel-frzr Door, White, Upper		Appelez-nous	-
14	5315230801		Button Plug, Refr/fzr Door		Appelez-nous	-
18	5303279298		Handle-door, White, Frzr, Upper		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
22	5303001022		Bearing-hinge Upper		Appelez-nous	-
23	5303001020		Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
34	5308000790		Bumper, Light Switch				$ 3.86
35	5303200272		Closer-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*56441	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
11A	5303916992		Panel-frzr Door, White, Lower		Appelez-nous	-
18A	5303279300		Handle-door, White, Frzr, Lower		Appelez-nous	-
1A	5303200275		Gasket-frzr Door, Magnetic, Lower		Appelez-nous	-
34A	5308002802		Bumper-light Switch				$ 16.72
9A	3200677		Panel-inner Door, Frzr, Lower		Appelez-nous	-
