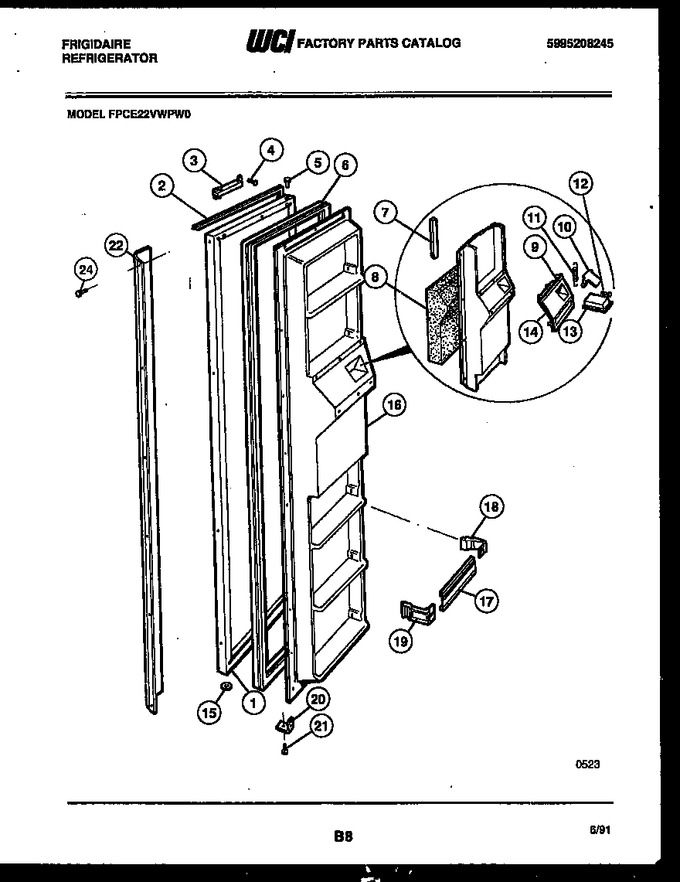

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G188326 | Freezer Door-white |
|
- | |||||
| 2 | 5303200732 | Trim-freezer Door |
|
- | |||||
| 3 | 5303200272 | Door Closer |
|
- | |||||
| 4 | 5303001020 | Screw-closer Mtg |
|
- | |||||
| 5 | 5303001022 | Bearing-upper Hinge |
|
- | |||||
| 6 | 5303200733 | Gasket-freezer Door |
|
- | |||||
| 7 | 5303001046 | Shield-wiring |
|
- | |||||
| 8 | 5308015556 | Insulation-housing |
|
- | |||||
| 9 | 5303001048 | Pin-ice Door Hinge |
|
- | |||||
| 10 | 5303017828 | Flipper-ice Door |
|
- | |||||
| 11 | 5308010300 | Spring-flipper |
|
$ 36.91 | |||||
| 12 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13 | 5303209287 | Ice Door |
|
$ 7.14 | |||||
| 14 | 3200736 | Cover-door Pnl |
|
- | |||||
| 15 | 5308010308 | Bushing-lower Hinge |
|
- | |||||
| 16 | 3200737 | Panel-inner Door |
|
- | |||||
| 17 | 5303206711 | Door Rack (5) |
|
- | |||||
| 18 | 5303206719 | Support-rs (5) |
|
- | |||||
| 19 | 5303206605 | Support-ls (5) |
|
- | |||||
| 20 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 21 | 5308002748 | Screw |
|
- | |||||
| 22 | 5303273122 | Handle-door-white |
|
- | |||||
| 24 | 5303272566 | Screw Handle-white |
|
- | |||||
| 24 | 5303272568 | Screw Handle-almond |
|
- | |||||
| 14A | 5308017047 | Push Nut (6) (non-illustrated) |
|
- | |||||
| 16A | 5308002748 | Screw |
|
- | |||||
| 1A | 5315230801 | Door Plug-bottom (non-illustrated) |
|
- |
