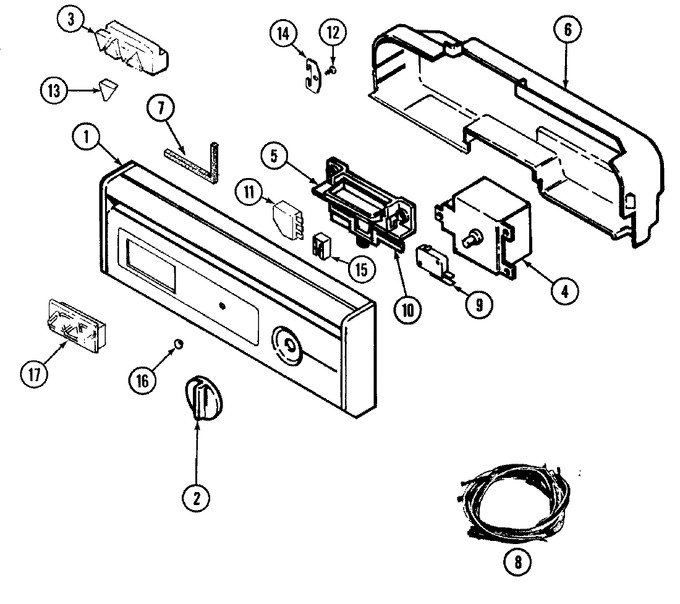

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Racks


05 - Rinse Aid & Soap Dispenser


06 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903902		Panel, Control	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001380		Panel, Control (blk)	28	Appelez-nous	-
2	903496		Knob, Timer	A0	Appelez-nous	-
3	913180		Shield, Control	A0	Appelez-nous	-
3	903507		Switch (8-button)	A0	Appelez-nous	-
4	903506		Timer	A0	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	Y912664		Holder, Door Switch	A0			$ 38.66
5	12001117		Kit, Latch Handle (blk)	A9	Appelez-nous	-
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
6	Y912937		Barrier, Control Panel	A0	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	A0	Appelez-nous	-
7	Y913116		Liner, Vent	A0	Appelez-nous	-
8	99001044		Wire Harness, Main	A6	Appelez-nous	-
8	99001173		Wire Harness, Main	B6	Appelez-nous	-
8	903508		Harness, Wire	A0	Appelez-nous	-
8	315471		Retainer, Wire	A6	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
10	Y912939		Handle, Latch	A0	Appelez-nous	-
10	12001117		Kit, Latch Handle (blk)	A9	Appelez-nous	-
11	903651		Extender, Cycle	A0	Appelez-nous	-
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
13	913149		Button, Drying Heat	A0	Appelez-nous	-
13	913144		Button, Super Scrub	A0	Appelez-nous	-
13	913147		Button, Heat Off	A0	Appelez-nous	-
13	913143		Button, Normal Wash	A0	Appelez-nous	-
13	913153		Button, Water Heat	A0	Appelez-nous	-
13	913155		Button, Rinse & Hold	A0	Appelez-nous	-
13	913154		Button, China Crystal	A0	Appelez-nous	-
13	913142		Button, Energy Saver Wash	A0	Appelez-nous	-
14	913139		Bracket, Switch	A0	Appelez-nous	-
15	903115		Lock Light	A0			$ 5.70
16	Y912696		Lens, Indicator Light	A0			$ 5.02
17	99001062		Bezel, Control Switch	A0	Appelez-nous	-
18	Y913014		Manual, Use & Care	A0	Appelez-nous	-
