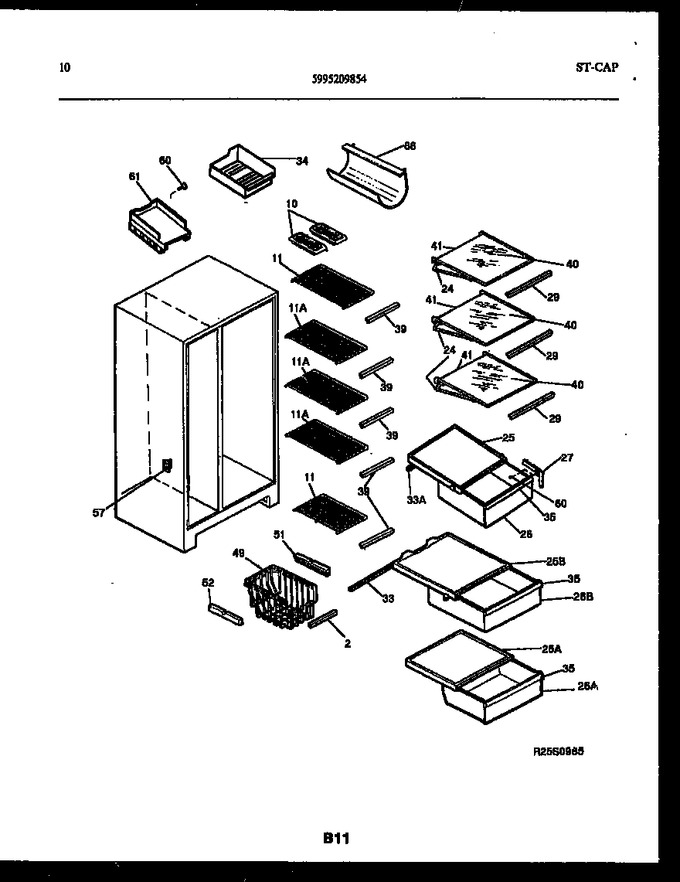

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3200729 | Trim-basket |
|
- | |||||
| 10 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 11 | 08001031 | Shelf - Freezer |
|
- | |||||
| 24 | 5303272461 | Frame-refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 5303200662 | Cover-crisper Pan, Upper |
|
- | |||||
| 26 | 3200690 | Pan-storage Upper |
|
- | |||||
| 27 | 5303201640 | Support-crisper Cvr, Rh |
|
- | |||||
| 29 | 3200685 | Trim-refr Shelf, (3) |
|
- | |||||
| 33 | 5303205880 | Gasket-crisper Cover |
|
- | |||||
| 34 | 5303212895 | Container, Ice |
|
- | |||||
| 35 | 3200544 | Trim-storage Pan, (3) |
|
- | |||||
| 39 | 3018989 | Trim-frzr Shelf, (5) |
|
- | |||||
| 40 | 5303272463 | Shelf-glass, Refr Shelf, (3) |
|
- | |||||
| 41 | 5303209981 | Trim-refr Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 49 | 5308001015 | Basket-sliding |
|
- | |||||
| 51 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 52 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 57 | 5303271652 | Ferrule-outer |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 61 | 08009824 | Compartment-ice Tray |
|
- | |||||
| 66 | 5303200682 | Rack-wine |
|
- | |||||
| *55500 | 5308008250 | Clip-crisper Cover, Rh |
|
- | |||||
| *55500 | 5300170910 | Clip-cantilever Shlf |
|
$ 2.60 | |||||
| *55500 | 5308008251 | Clip-crisper Cover, Lh |
|
$ 42.94 | |||||
| 11A | 08001032 | Shelf-freezer, (3) |
|
- | |||||
| 25A | 3200663 | Cover-crisper Pan, Lower |
|
- | |||||
| 25A | 5303200689 | Shelf-glass, Crisper Cover (non-illustrated) |
|
- | |||||
| 25B | 3204600 | Trim-crisper Cover, Upper (non-illustrated) |
|
- | |||||
| 25B | 5303200632 | Cover-crisper Pan, Middle |
|
- | |||||
| 25C | 5303200580 | Control - Humidity (non-illustrated) |
|
- | |||||
| 26A | 3200688 | Pan-storage Lower |
|
- | |||||
| 26B | 3200687 | Pan-storage-middle |
|
- | |||||
| 27A | 5303201639 | Support-crisper Cvr, Lh (non-illustrated) |
|
$ 69.09 | |||||
| 29A | 5303209742 | Retainer-glass (3) (non-illustrated) |
|
- | |||||
| 33A | 5308009648 | Gasket-crisper Cover |
|
- | |||||
| 41A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- |
