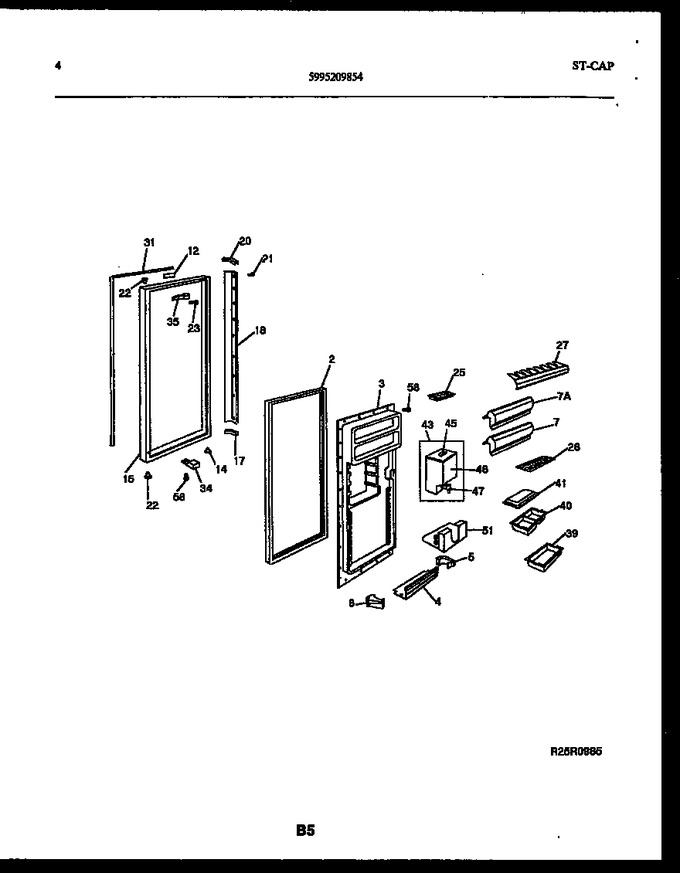

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303200273 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 3200672 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303206704 | Shelf-door (3) |
|
- | |||||
| 5 | 5303206684 | Support-door Shelf, Rh |
|
- | |||||
| 6 | 5303206685 | Support-door Shelf, Lh |
|
- | |||||
| 7 | 3200415 | Door-dairy, Lower |
|
- | |||||
| 12 | 3201581 | Nameplate Assy |
|
- | |||||
| 14 | 5315230801 | Button Plug, Refr/fzr Door |
|
- | |||||
| 15 | 5308009954 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 5308017423 | Handle-door, Full-length, W/ Trim, End Caps |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5303001022 | Bearing-hinge Upper |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 23 | 5303001020 | Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 25 | 5303018743 | Dish, Butter |
|
- | |||||
| 26 | 5303018932 | Tray-egg |
|
- | |||||
| 27 | 3200675 | Snugger-door Rack |
|
- | |||||
| 31 | 3200671 | Trim-refr Door |
|
- | |||||
| 34 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 35 | 5303200272 | Closer-door |
|
- | |||||
| 39 | 5303200412 | Dish-microwave, Single |
|
- | |||||
| 40 | 5303200413 | Dish, Microwave Double |
|
- | |||||
| 41 | 5303200414 | Lid-microwave Dish |
|
- | |||||
| 43 | 5303200416 | Beverage Center |
|
- | |||||
| 45 | 3205292 | Lid-bvge Container |
|
- | |||||
| 46 | 3205291 | Container-bvge |
|
- | |||||
| 47 | 3205288 | Spigot-bvge Container |
|
- | |||||
| 51 | 5303200676 | Shelf-bvge Container |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 47A | 3205289 | Grommet-spigot (non-illustrated) |
|
- | |||||
| 47B | 3205290 | Nut-spigot (non-illustrated) |
|
- | |||||
| 7A | 5303200442 | Door-dairy, Upper |
|
- |
