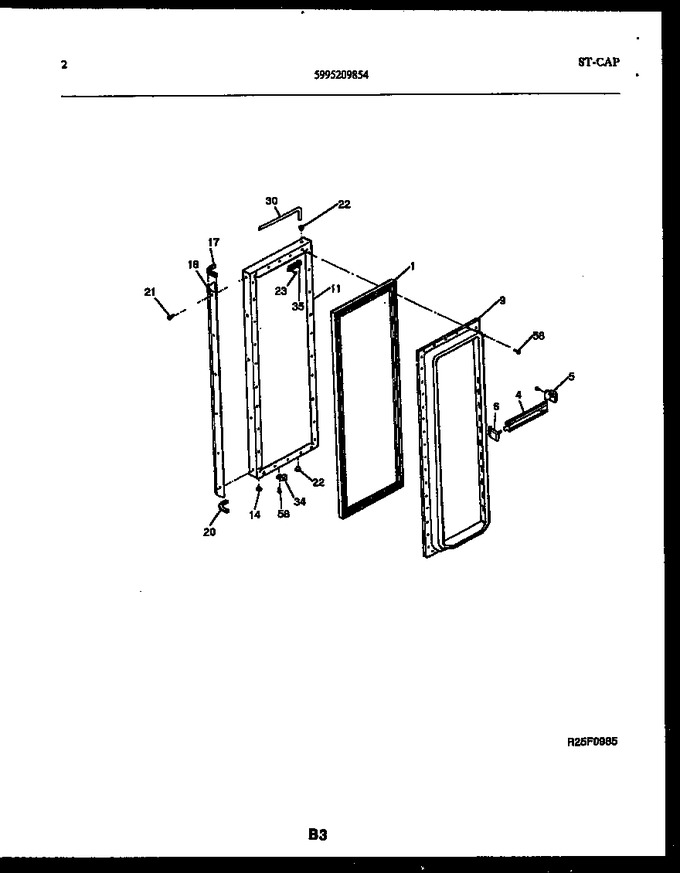

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200717		Gasket-frzr Door, Magnetic		Appelez-nous	-
4	5303206702		Shelf-door, (6)		Appelez-nous	-
5	5303206698		Support-door Shelf, Rh		Appelez-nous	-
6	5303206697		Support-door Shelf, Lh		Appelez-nous	-
9	3200722		Panel-inner Door, Frzr		Appelez-nous	-
11	5308009980		Panel-frzr Door, White		Appelez-nous	-
14	5315230801		Button Plug, Refr/fzr Door		Appelez-nous	-
17	5308010238		Handle End		Appelez-nous	-
18	5308017423		Handle-door, Full-length, W/ Trim, End Caps		Appelez-nous	-
20	5308010239		Handle End		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	5303001022		Bearing-hinge Upper		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
23	5303001020		Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
30	5303200715		Trim-frzr Door		Appelez-nous	-
34	5308000790		Bumper, Light Switch				$ 3.86
35	5303200272		Closer-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*55490	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
