Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303200717 Gasket-frzr Door, Magnetic Appelez-nous -
4 5303206702 Shelf-door, (6) Appelez-nous -
5 5303206698 Support-door Shelf, Rh, (6) Appelez-nous -
6 5303206697 Support-door Shelf, Lh, (6) Appelez-nous -
9 3200722 Panel-inner Door, Frzr Appelez-nous -
11 5303917025 Panel-frzr Door, Almond Appelez-nous -
14 5315230801 Plug-button, Refr/frzr Door Appelez-nous -
18 5303273123 Handle-door, Full-length, Almond Appelez-nous -
21 5303272568 Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo Appelez-nous -
22 5308012007 Bearing-hinge Appelez-nous -
22 5303001022 Bearing-hinge Upper Appelez-nous -
23 5303001020 Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2 Appelez-nous -
34 5308000790 Bumper, Light Switch Special Order $ 3.86

35 5303200272 Closer-door Appelez-nous -
58 5308002748 Screw Appelez-nous -
NI 5303007739 Insulation, Door, Fiberglass, (bulk) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

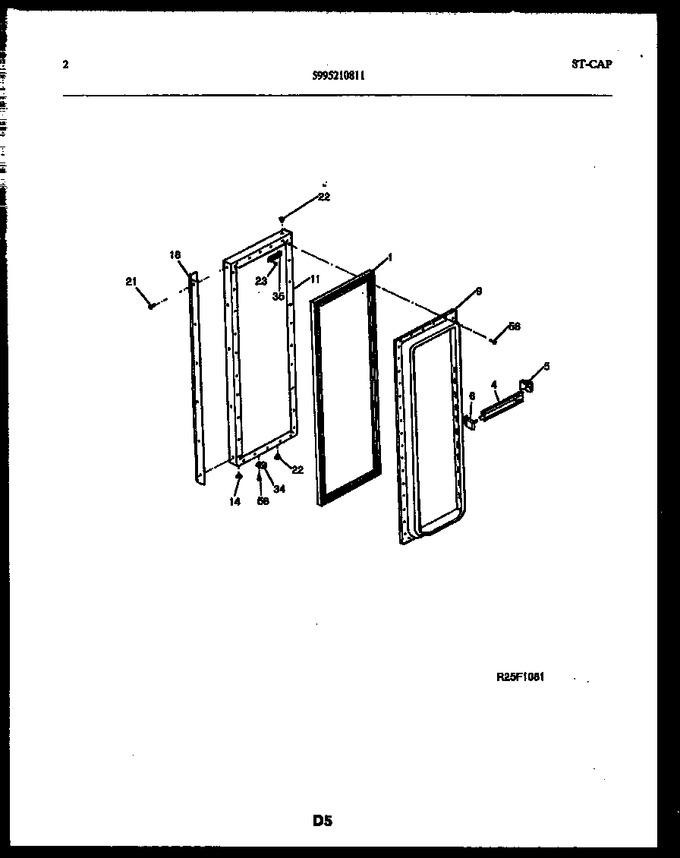

Diagram for FPCE24VPL0
