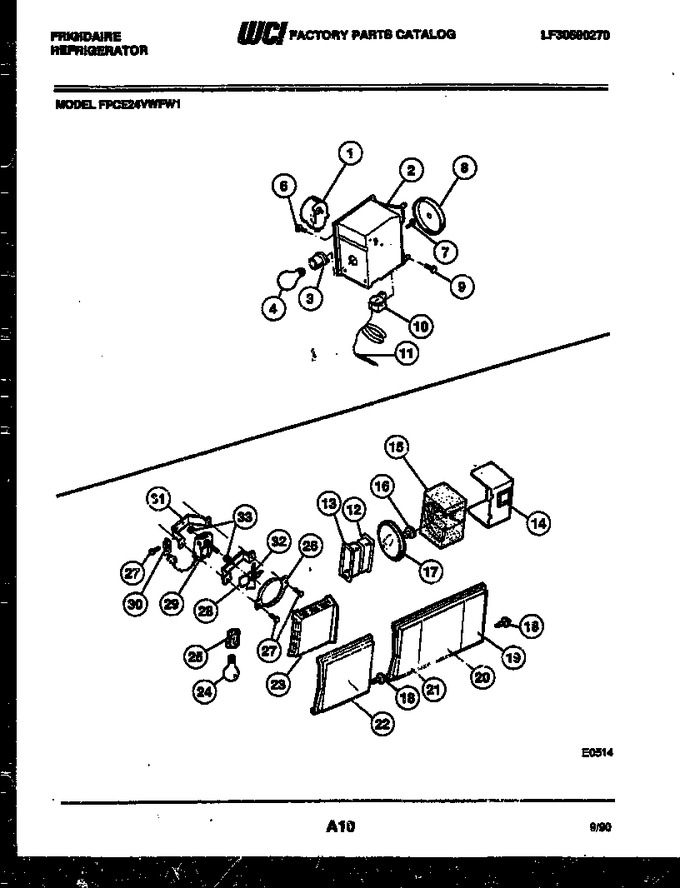

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 2 | 5308017561 | Box-control |
|
- | |||||
| 3 | 5308000129 | Socket-light |
|
$ 62.16 | |||||
| 4 | 5303001179 | Bulb, Light |
|
- | |||||
| 5 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 6 | 5308010253 | Screw (2) |
|
- | |||||
| 7 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 8 | 5308010380 | Knob-cold Control |
|
- | |||||
| 9 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 10 | 5308000068 | Control-cold |
|
$ 166.58 | |||||
| 11 | 5308037932 | Tube-plastic |
|
- | |||||
| 12 | 5303001276 | Ferrule, Inner |
|
- | |||||
| 13 | 5303001277 | Ferrule, Outer |
|
- | |||||
| 14 | 5303211383 | Box-damper Control |
|
- | |||||
| 15 | 5308000771 | Deflector-air |
|
- | |||||
| 16 | 5300185373 | Rivet, Expansion |
|
- | |||||
| 17 | 5308010379 | Knob-damper Control |
|
- | |||||
| 18 | 5303001213 | Support (2) |
|
- | |||||
| 19 | 5308009987 | Label-refr Shield Rh |
|
- | |||||
| 20 | 5308017596 | Shield-light Refr |
|
- | |||||
| 21 | 5308009988 | Label-refr Shield Lh |
|
- | |||||
| 22 | 08010364 | Shield-light Freezer |
|
- | |||||
| 23 | 5308015764 | Cover-fan |
|
- | |||||
| 24 | 5303001179 | Bulb, Light |
|
- | |||||
| 25 | 218906802 | Socket, Light (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 26 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 27 | 5308007097 | Screw (3) |
|
- | |||||
| 28 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 29 | 5300158289 | Motor-blower |
|
Immediately | $ 149.94 | ||||
| 30 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 31 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 32 | 5303001226 | Bracket-motor Mtg (front) |
|
- | |||||
| *36999 | 5303210353 | Screw-connector Bracket Mtg |
|
- | |||||
| *36999 | 5303207333 | Holder-cable |
|
- | |||||
| *36999 | 5303015098 | Harness-control |
|
- | |||||
| *36999 | 5308000808 | Ferrule-inner |
|
- | |||||
| *36999 | 5308000809 | Ferrule-outer |
|
- | |||||
| *37000 | 5303001280 | Gasket-ferrule (2) |
|
- | |||||
| 13A | 5303001280 | Gasket-ferrule (2) (non-illustrated) |
|
- | |||||
| 28A | 5303001216 | Washer-nylon 3/16 X 5/8 Od (non-illustrated) |
|
- | |||||
| 2A | 3001269 | Insul-control Box-rear (non-illustrated) |
|
- |
