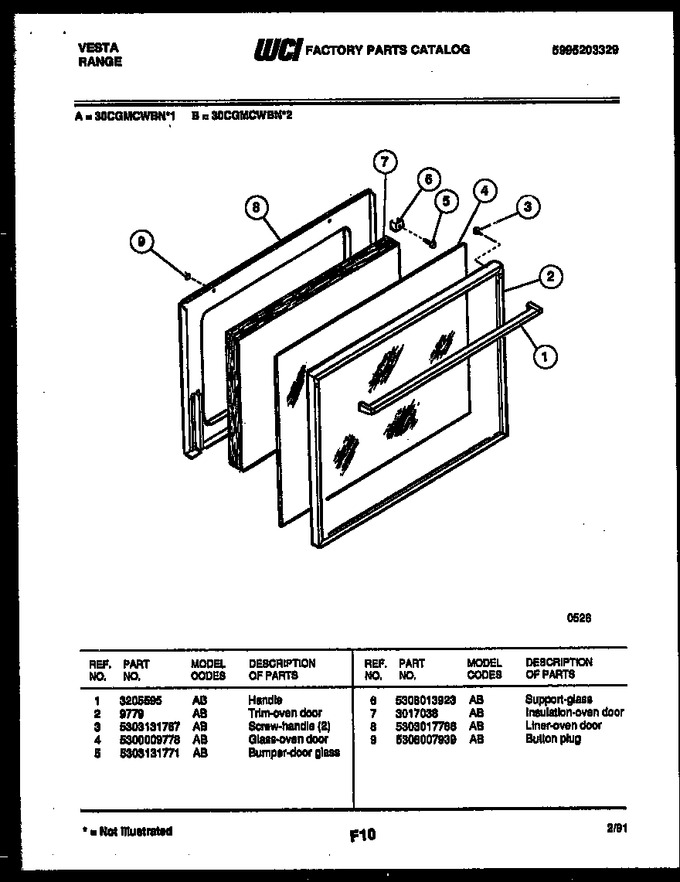

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205595 | Handle |
|
- | |||||
| 2 | 9779 | Trim - Oven Door |
|
- | |||||
| 3 | 5303131767 | Screw-handle (2) |
|
- | |||||
| 4 | 5300009778 | Glass-oven Door |
|
- | |||||
| 5 | 5303131771 | Bumper-door Glass |
|
- | |||||
| 6 | 5308013923 | Support-glass |
|
- | |||||
| 7 | 3017038 | Insulation - Oven Door |
|
- | |||||
| 8 | 5303017786 | Liner-oven Door |
|
- | |||||
| 9 | 5308007939 | Button Plug |
|
- |
