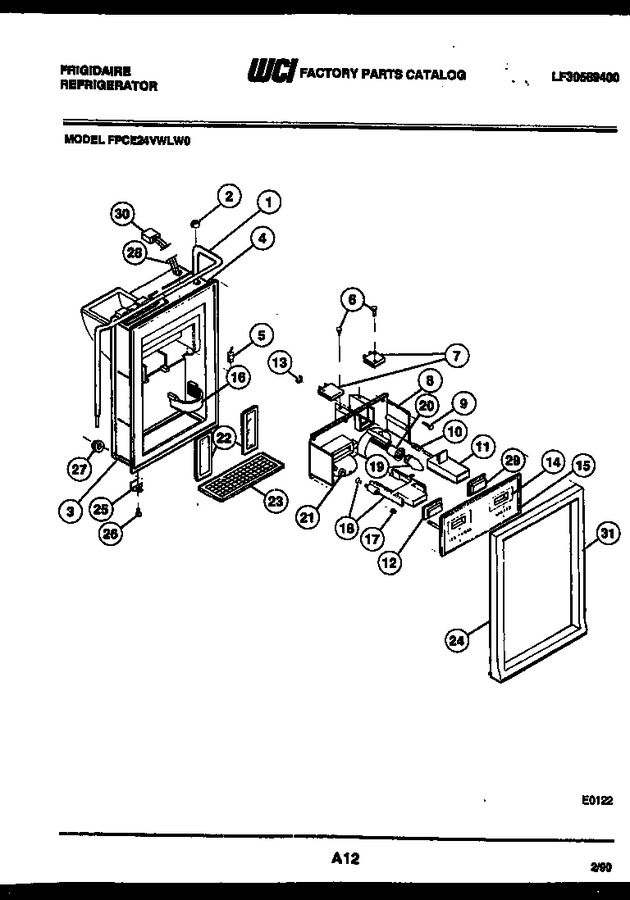

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08017048 | Tube-water Inlet And Pilot Assembly |
|
- | |||||
| 2 | 02832218 | Grommet-water Tube |
|
- | |||||
| 3 | 08015588 | Heater-door Housing |
|
- | |||||
| 4 | G188308-03 | Housing-door Panel |
|
- | |||||
| 5 | 08010326 | Clamp-water Tube |
|
- | |||||
| 6 | 01123574 | Screw (4) |
|
- | |||||
| 7 | 08014530 | Switch-solenoied (2) |
|
- | |||||
| 8 | 3204878 | Plate-switch Mtg |
|
- | |||||
| 9 | 08015610 | Screw (4) |
|
- | |||||
| 10 | 02832212 | Spring-water Actuator |
|
- | |||||
| 11 | 08010320 | Actuator-water |
|
- | |||||
| 12 | 5303206953 | Button-actuator Ice |
|
- | |||||
| 13 | 02832214 | Clip-water Actuator |
|
- | |||||
| 14 | 5303206952 | Label-front Panel |
|
- | |||||
| 15 | 5303206951 | Front Panel |
|
- | |||||
| 16 | 3205864 | Skirt-ice Deflector |
|
- | |||||
| 17 | 02832213 | Screw-adjusting |
|
- | |||||
| 18 | 3001075 | Ice Actuator Assy |
|
- | |||||
| 19 | 3001080 | Light Bulb |
|
- | |||||
| 20 | 08010324 | Socket-light Bulb |
|
- | |||||
| 21 | 02832216 | Anchor-stud (2) |
|
- | |||||
| 22 | 3015822 | Pad-fill (2) |
|
- | |||||
| 23 | 3015823 | Grid-water Spill |
|
- | |||||
| 24 | 3205853 | Frame-door Hsg (also Use Ref. No. 31) |
|
- | |||||
| 25 | 08010325 | Clip-hsg Frame (2) |
|
- | |||||
| 26 | 08010330 | Screw-clip Mtg |
|
- | |||||
| 27 | 08017047 | Palnut-self Thd (12) |
|
- | |||||
| 28 | 08015604 | Wiring Harness-freezer Door |
|
- | |||||
| 29 | 5303206954 | Button-actuator Water |
|
- | |||||
| 30 | 08010302 | Plug-housing |
|
- | |||||
| 31 | 5303206981 | Trim-frame |
|
- | |||||
| 28A | 08014569 | Diode Kit (non-illustrated) |
|
- |
