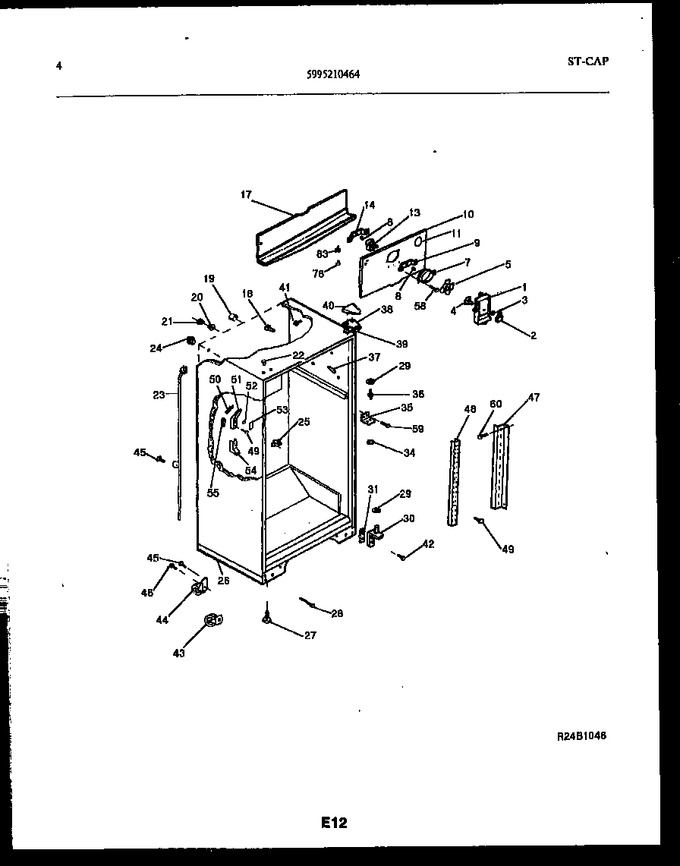

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303275708 | Cover-fan |
|
- | |||||
| 2 | 5303275839 | Knb-damper Control |
|
- | |||||
| 3 | 5302001028 | Nut-push |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 5308013665 | Cove-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 13 | 5300158289 | Motor-fan (Replaces: 5303275816) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 5303001470 | Drain Trough |
|
- | |||||
| 18 | 5308000097 | Support, Evap Cover, (2) |
|
- | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303272427 | Button Plug, Black, Upr Hinge Holes |
|
- | |||||
| 23 | 5303210377 | Drain Tube, W/ Seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 26 | 5303212487 | Base-cabinet |
|
- | |||||
| 27 | 5303212922 | Screw-leveling |
|
$ 10.71 | |||||
| 28 | 5303271412 | Bolt, Roller Adj. Indt Hx Hd Sems, 1/4, 28 X 2, 3/4, (2) |
|
$ 37.64 | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 5303212489 | Bracket-lower Hinge, W/ Hinge Pin |
|
- | |||||
| 31 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 5303272429 | Bracket-center Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303272428 | Trim-cabinet Corner, Black, (4) |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 5303272392 | Cover-upper Hinge, Black |
|
- | |||||
| 10A | 5303209814 | Nut, ``u`` Type, No. 8(a), Evap Cover, (2) (non-illustrated) |
|
- | |||||
| 1A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 25A | 5303001361 | Pin, Push, Drain Spout (2) (non-illustrated) |
|
- | |||||
| 30A | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 30B | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 38A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38B | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 |
