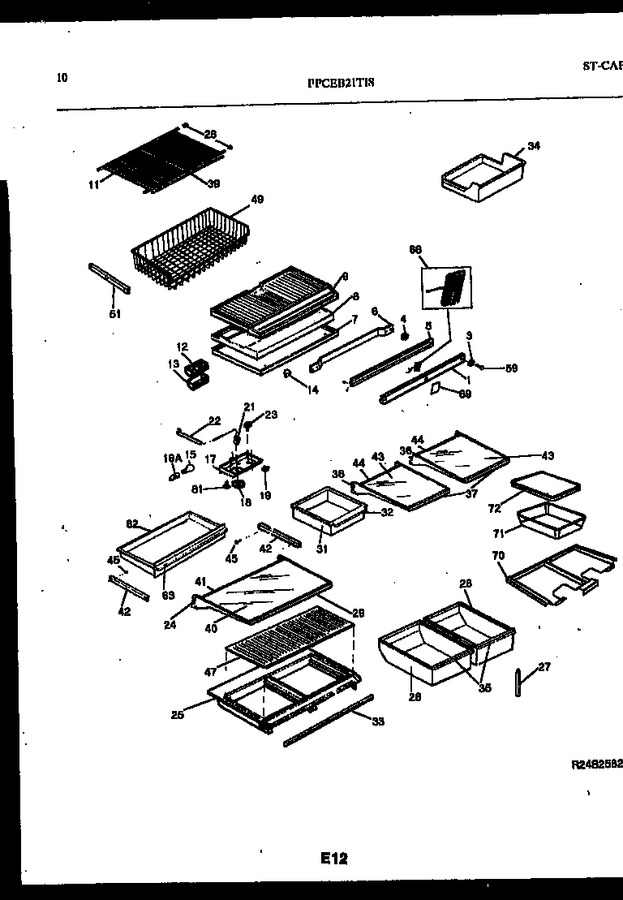

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	5303275679		Trim-full Shelf		Appelez-nous	-
31	5303275616		Pan-meat		Appelez-nous	-
32	5303275759		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
34	5303275651		Container-ice		Appelez-nous	-
35	5303290991		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303275757		Trim-crisper Pan, Rh		Appelez-nous	-
36	5303209270		Frame-half Shelf, Cantilever, (2)		Appelez-nous	-
37	5303275678		Trim-half Shelf, Front, (2)		Appelez-nous	-
39	5303276784		Trim-frzr Shelf		Appelez-nous	-
40	5303275783		Shelf-glass, Full Shelf		Appelez-nous	-
41	5303211962		Trim-full Shelf, Snap-on, Rear		Appelez-nous	-
42	5303209272		Hanger, Meat Pan/tray, Lh				$ 90.83
43	5303275784		Shelf-glass, Half Shelf, (2)		Appelez-nous	-
44	5303211828		Trim-half Shelf, Rear, (2)		Appelez-nous	-
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303275650		Insert-crisper Cvr, Glass		Appelez-nous	-
49	5303206649		Basket-sliding, Full-width, Frzr		Appelez-nous	-
51	5303206522		Hanger-basket Lh		Appelez-nous	-
59	5308012258		Screw				$ 2.25
62	5303275624		Tray-deli		Appelez-nous	-
63	5303275760		Trim-deli Tray		Appelez-nous	-
68	5303211924		Sensor, Door Ajar		Appelez-nous	-
69	5303275727		Label-dr Ajar Sensr		Appelez-nous	-
70	5303275653		Tray-sliding, Corning Dish		Appelez-nous	-
71	5303275753		Dish-corning Glass		Appelez-nous	-
72	5303275754		Cover-corning Dish		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*65148	5300170910		Clip-cantilevr Shlf				$ 2.60
*65148	5303211351		Lock, Rear Trim		Appelez-nous	-
29A	5303211965		Retainer/gasket, Full Shelf-frnt (non-illustrated)		Appelez-nous	-
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
41A	5303211966		Gasket, Full Shelf-rear (non-illustrated)		Appelez-nous	-
42A	5303209273		Hanger, Meat Pan/tray, Rh (non-illustrated)				$ 60.06
51A	5303206521		Hanger-basket, Rh (non-illustrated)		Appelez-nous	-
62A	5303275625		Divider-deli Tray (non-illustrated)		Appelez-nous	-
68A	5303211925		Retainer - Sensor (non-illustrated)		Appelez-nous	-
