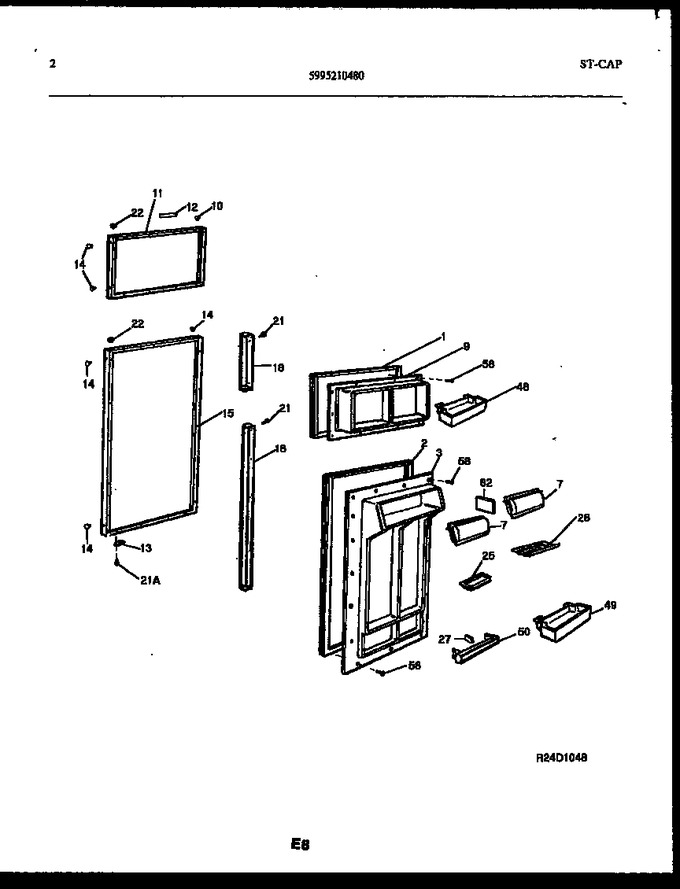

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206633 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303206641 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303275674 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 5303275672 | Door-dairy, Lh |
|
- | |||||
| 7 | 5303275671 | Door-dairy, Rh |
|
- | |||||
| 9 | 5303275724 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916626 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5303206636 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917022 | Panel-refr Door, White |
|
- | |||||
| 18 | 5303272793 | Handle, Door, White, Frzr |
|
- | |||||
| 18 | 5303272661 | Handle-door, White, Refr |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 25 | 5303018743 | Dish, Butter |
|
- | |||||
| 26 | 5303275584 | Tray-egg |
|
- | |||||
| 27 | 5303275732 | Snugger-door Rack |
|
- | |||||
| 29 | 5308009601 | Button Plug |
|
- | |||||
| 48 | 5303275668 | Bin-door, 2 Liter, (4) |
|
- | |||||
| 49 | 5303275666 | Bin-door, Gallon, (4) |
|
- | |||||
| 50 | 5303275669 | Bin-door, Small, (2) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 62 | 5303275673 | Divider-dairy |
|
- | |||||
| *55776 | 5308017047 | Nut, Self Threading, 1/8, (4) |
|
- | |||||
| *55776 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 15A | 5303275660 | Brace, Cross (non Illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
