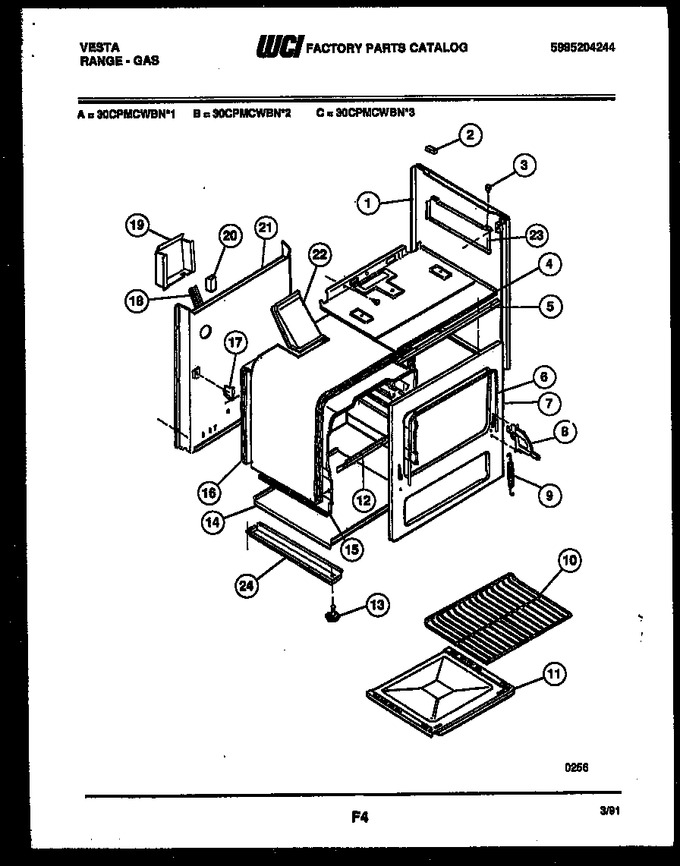

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner Parts
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016129 | Grommet Main Top |
|
- | |||||
| 2 | 3051063 | Grommet |
|
- | |||||
| 3 | 5303051061 | Side Body-white (2) |
|
- | |||||
| 4 | 3017174 | Bottom Burner Box |
|
- | |||||
| 5 | 3131811 | Support-control Panel |
|
- | |||||
| 6 | 3205578 | Front Frame-bronze |
|
- | |||||
| 7 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 8 | 5303204670 | Hinge Assy-rh |
|
- | |||||
| 9 | 5303009435 | Spring Oven Door (2) |
|
- | |||||
| 10 | 5303015714 | Rack Oven (2) |
|
- | |||||
| 11 | 3018282 | Liner-oven-bottom |
|
- | |||||
| 12 | 3131038 | Support-oven Bottom |
|
- | |||||
| 13 | 3051080 | Leg Leveler (4) |
|
- | |||||
| 14 | 3011645 | Bottom - Main |
|
- | |||||
| 15 | 3018285 | Liner Lh |
|
- | |||||
| 16 | 3017171 | Insulation - Wrap |
|
- | |||||
| 17 | 3051096 | Support-oven Rear (2) |
|
- | |||||
| 18 | 3131046 | Channel Main Back |
|
- | |||||
| 19 | 08013953 | Cover-spark Module |
|
- | |||||
| 20 | 3015197 | Spark - Module |
|
- | |||||
| 21 | 5303013340 | Main Back |
|
- | |||||
| 22 | 3017173 | Vent Box |
|
- | |||||
| 23 | 5303131053 | Shield-burner Box Rh |
|
- | |||||
| 24 | 08068047 | Base Rail |
|
- | |||||
| *29790 | 3934059 | Anti - Tip Bracket |
|
- | |||||
| *29790 | 3131791 | Clip-backsplash |
|
$ 19.01 | |||||
| *29790 | 191S018F271 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| 15A | 3018284 | Liner Rh |
|
- | |||||
| 15B | 3018347 | Liner - Top |
|
- | |||||
| 15C | 3018995 | Liner - Back |
|
- | |||||
| 16A | 3017172 | Insulation - Back |
|
- | |||||
| 23A | 5303131054 | Shield-burner Box Lh |
|
- | |||||
| 8A | 5303204672 | Hinge Assy-lh |
|
- |
