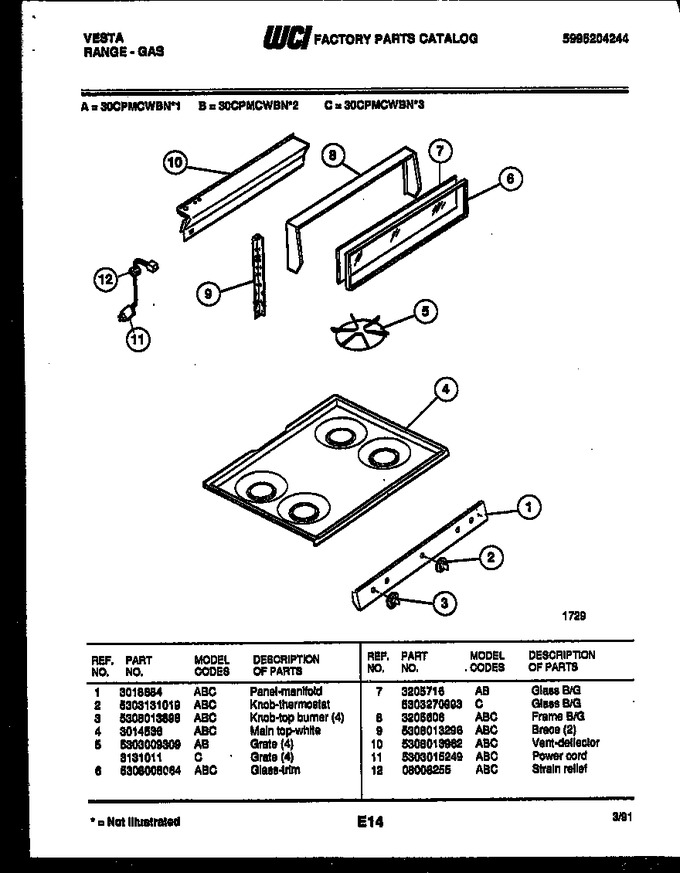

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018684 | Panel-manifold |
|
- | |||||
| 2 | 5303131019 | Knob-thermostat |
|
- | |||||
| 3 | 5308013898 | Knob-top Burner (4) |
|
$ 69.30 | |||||
| 4 | 3014536 | Main Top (white) |
|
- | |||||
| 5 | 3131011 | Grate (4) |
|
- | |||||
| 6 | 5308008064 | Glass-trim |
|
- | |||||
| 7 | 5303270993 | Glass B/g |
|
- | |||||
| 8 | 3205606 | Frame B/g |
|
- | |||||
| 9 | 5308013296 | Brace (2) |
|
- | |||||
| 10 | 5308013962 | Vent-deflector |
|
- | |||||
| 11 | 5303015249 | Power Cord |
|
- | |||||
| 12 | 08008255 | Strain - Relief |
|
- |
