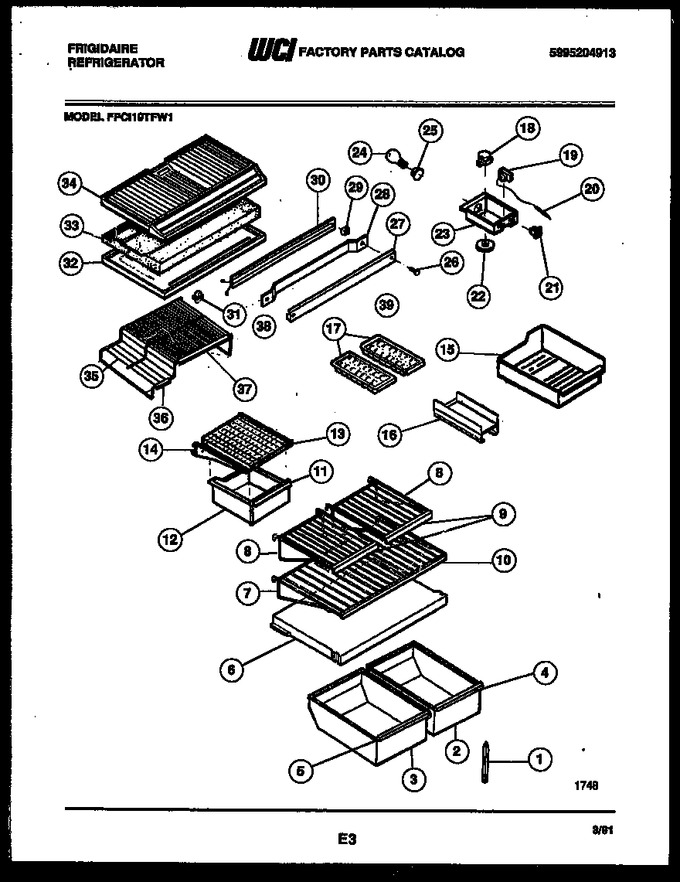

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206507 | Support, Cover |
|
- | |||||
| 2 | 3018982 | Pan, Crisper, Rh |
|
- | |||||
| 3 | 3018873 | Pan, Crisper, Lh |
|
- | |||||
| 4 | 3017422 | Trim, Pan, Rh |
|
- | |||||
| 5 | 3017423 | Trim, Pan, Lh |
|
- | |||||
| 6 | 5303018983 | Cover, Crisper |
|
- | |||||
| 7 | 3018981 | Shelf-full |
|
- | |||||
| 8 | 3018990 | Shelf-half (2) |
|
- | |||||
| 9 | 3018989 | Trim-half Shelf (2) |
|
- | |||||
| 10 | 3018980 | Trim-full Shelf |
|
- | |||||
| 11 | 3018986 | Trim, Meat Pan |
|
- | |||||
| 12 | 3018987 | Meat Pan |
|
- | |||||
| 13 | 3018988 | Cover-meat Pan |
|
- | |||||
| 14 | 3018991 | Rail-offset Lh |
|
- | |||||
| 15 | 5303212895 | Ice Container |
|
- | |||||
| 16 | 08009824 | Ice Tray Compartment |
|
- | |||||
| 17 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 18 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 19 | 5303018894 | Control-temp |
|
- | |||||
| 20 | 3018891 | Housing, Cap Tube |
|
- | |||||
| 21 | 5303018896 | Switch, Rocker |
|
- | |||||
| 22 | 3018893 | Knob-control Temp |
|
- | |||||
| 23 | 3018895 | Control Box |
|
- | |||||
| 24 | 5303001179 | Light Bulb |
|
- | |||||
| 25 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 26 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 27 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 28 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 29 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 30 | 5303210351 | Mullion Heater |
|
- | |||||
| 31 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 32 | 3018993 | Top - Refrigerator |
|
- | |||||
| 33 | 3018994 | Divider-foam |
|
- | |||||
| 34 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 35 | 3018979 | Shelf-freezer |
|
- | |||||
| 36 | 3017427 | Trim, Shelf |
|
- | |||||
| 37 | 3018978 | Trim, Shelf |
|
- | |||||
| 38 | 3201150 | End Cap-shelf (2) |
|
$ 4.57 | |||||
| 39 | 5303206754 | Washer-mullion (2) |
|
- | |||||
| *42680 | 3018900 | Harness-divider |
|
- | |||||
| 14A | 3018992 | Rail-straight Rh (non-illustrated) |
|
- | |||||
| 14B | 5300115932 | Screw (2) (non-illustrated) |
|
- | |||||
| 18A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 19A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5308002748 | Screw |
|
- | |||||
| 32A | 5303001380 | Screw |
|
- | |||||
| 34A | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 6A | 3018984 | Trim, Crisper Cover (non Illustrated) |
|
- | |||||
| 6B | 3200389 | Glass-crisper Cover (non-illustrated) |
|
- | |||||
| 6C | 5303200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
