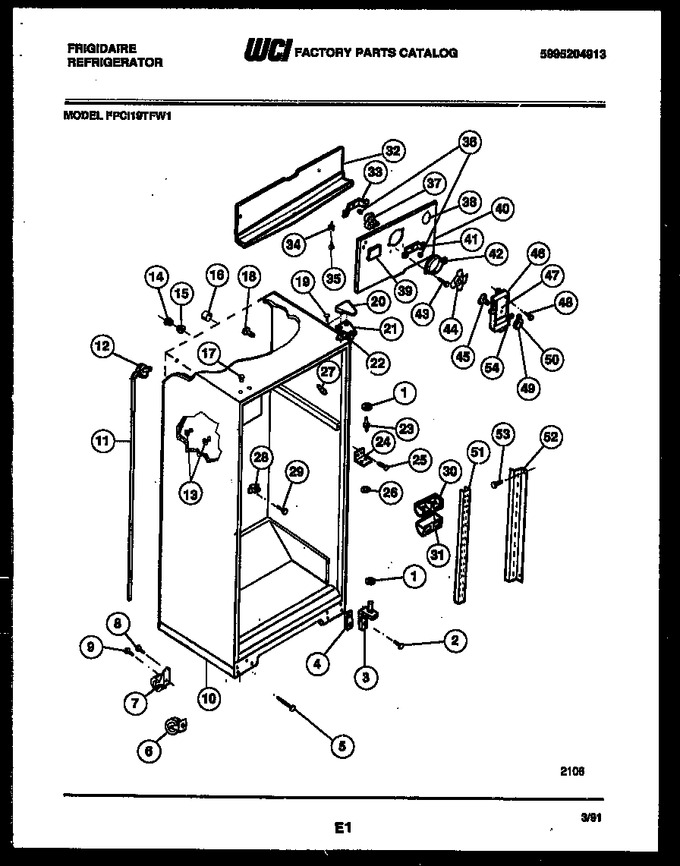

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 2 | 5303001320 | Screw-hinge Gusset Mtg (6) |
|
- | |||||
| 3 | 5303212489 | Bracket, Bottom Hinge |
|
- | |||||
| 4 | 5303212488 | Shim, Bottom Hinge |
|
$ 5.25 | |||||
| 5 | 5303271412 | Bolt-roller Adj (2) |
|
$ 37.64 | |||||
| 6 | 5303212490 | Front Roller Assy (2) |
|
- | |||||
| 7 | 5308009773 | Rear Roller Assy (2) |
|
- | |||||
| 8 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 9 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 10 | 5303212487 | Base-cabinet |
|
- | |||||
| 11 | 5303210377 | Drain Tube W/ Ring Seal |
|
$ 109.31 | |||||
| 12 | 5303207353 | Ring - Seal |
|
$ 6.81 | |||||
| 13 | 5304509705 | Grommet, Shelf (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 14 | 5303001287 | Ferrule-outer |
|
- | |||||
| 15 | 5303001286 | Ferrule-inner |
|
- | |||||
| 16 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 17 | 5303001388 | Plug - Hinge - White |
|
$ 2.60 | |||||
| 18 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 19 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 20 | 5308012820 | Hinge Cover, White |
|
- | |||||
| 21 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 22 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 23 | 5308000184 | Pin, Ctr Hinge |
|
$ 8.87 | |||||
| 24 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 25 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 26 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 27 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 28 | 5308000056 | Drain Spout |
|
$ 11.66 | |||||
| 29 | 5303001361 | Push Pin |
|
- | |||||
| 30 | 5308014667 | Air Deflector |
|
- | |||||
| 31 | 5303001448 | Cover-deflector |
|
- | |||||
| 32 | 5303001470 | Drain Trough |
|
- | |||||
| 33 | 5303205119 | Bracket, Rear |
|
- | |||||
| 34 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 35 | 5303210353 | Screw-bracket Mtg |
|
- | |||||
| 36 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 37 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 38 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| 39 | 5308013636 | Plug, Decorative |
|
- | |||||
| 40 | 5308009771 | Cover-evap Coil |
|
- | |||||
| 41 | 5303205118 | Bracket - Front |
|
- | |||||
| 42 | 5308000124 | Orifice Ring-fan |
|
$ 53.58 | |||||
| 43 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 44 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 45 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 46 | 08009817 | Fan Cover |
|
- | |||||
| 47 | 08009822 | Label-fan Cover |
|
- | |||||
| 48 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 49 | 5308009793 | Knob, Damper |
|
- | |||||
| 50 | 08009823 | Label, Knob |
|
- | |||||
| 51 | 5303015409 | Channel Center |
|
- | |||||
| 52 | 5308000302 | Channel, Rh & Lh |
|
- | |||||
| 53 | 5308010253 | Screw, Mtg (6) |
|
- | |||||
| 54 | 5303001028 | Push-nut |
|
- | |||||
| *42676 | 5308016571 | Plug-frzer Liner (3) |
|
$ 4.79 | |||||
| *42676 | 5308012296 | Plate-tapping (2) |
|
$ 47.44 | |||||
| *42676 | 08012329 | Label-im |
|
- | |||||
| 13A | 5304500407 | Grommet-shelf (2) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 31A | 5303200590 | Extension & Insulation Air Deflector (non-illustrated) |
|
- | |||||
| 3A | 5303212597 | Gusset-tapping Plate Rh (non-illustrated) |
|
- | |||||
| 3B | 5303212596 | Gusset-tapping Plate (lh) (non-illustrated) |
|
- | |||||
| 40A | 5303209814 | Nut U, Type (2) (non-illustrated) |
|
- | |||||
| 51A | 5308016568 | Screw (3) (non-illustrated) |
|
- |
