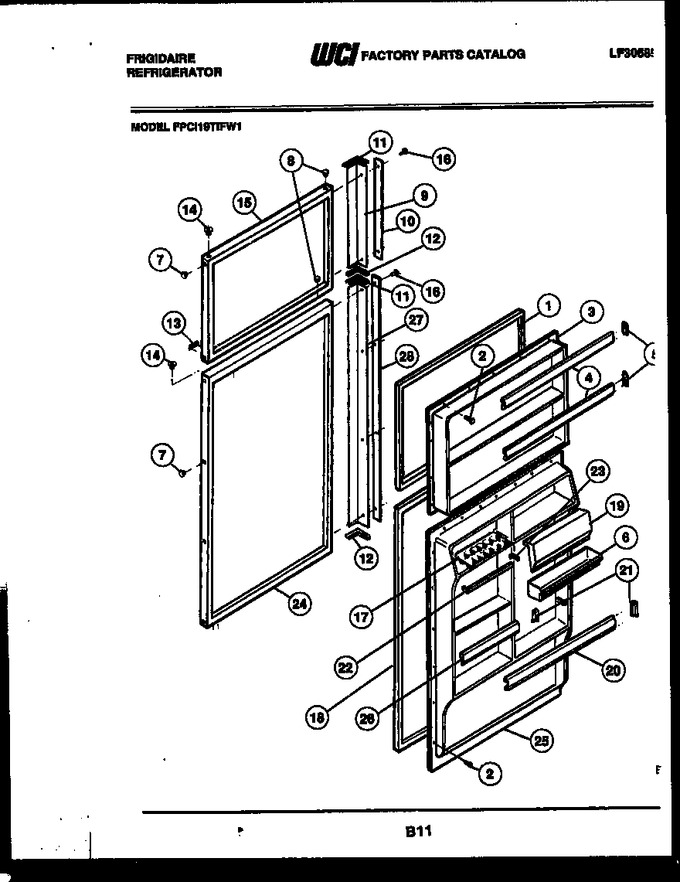

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017189		Gasket-freezer		Appelez-nous	-
2	08002748		Screw		Appelez-nous	-
3	3018971		Panel-inner Freezer		Appelez-nous	-
4	3018972		Rack, Freezer (2)		Appelez-nous	-
5	3017378		Support Lh (2)		Appelez-nous	-
6	3018973		Bin-utility		Appelez-nous	-
7	08000179		Button-plug, Avocado		Appelez-nous	-
8	08000175		Button-plug, Avocado		Appelez-nous	-
9	3017190		Handle-complete		Appelez-nous	-
10	08010232		Trim-handle		Appelez-nous	-
11	08010239		Cap-top (2)		Appelez-nous	-
12	08010238		Cap-bottom (2)		Appelez-nous	-
13	3018385		Nameplate		Appelez-nous	-
14	08012007		Bearing-hinge		Appelez-nous	-
15	08010021		Panel, Freezer (avoc)		Appelez-nous	-
16	08013645		Screw (6)		Appelez-nous	-
17	3018932		Tray-egg		Appelez-nous	-
18	3018238		Gasket-refr		Appelez-nous	-
19	3018974		Door-dairy		Appelez-nous	-
20	3018975		Rack-refr Door		Appelez-nous	-
21	3018869		Support Rh (2)		Appelez-nous	-
22	3018423		Rack-refr Door		Appelez-nous	-
23	3017381		Support Rh		Appelez-nous	-
24	08010019		Panel, Refr (avoc)		Appelez-nous	-
25	3018976		Panel-inner Refr		Appelez-nous	-
26	3019018		Rack-refr Door		Appelez-nous	-
27	08017497		Handle-complete		Appelez-nous	-
28	08010233		Trim-handle		Appelez-nous	-
*28237	08000255		Door Stop (2)		Appelez-nous	-
*28237	3205117		Snugger-finger		Appelez-nous	-
21A	3018870		Support Lh (2) (non-illustrated)		Appelez-nous	-
23A	3017378		Support Lh (non-illustrated)		Appelez-nous	-
5A	3017381		Support Rh (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
